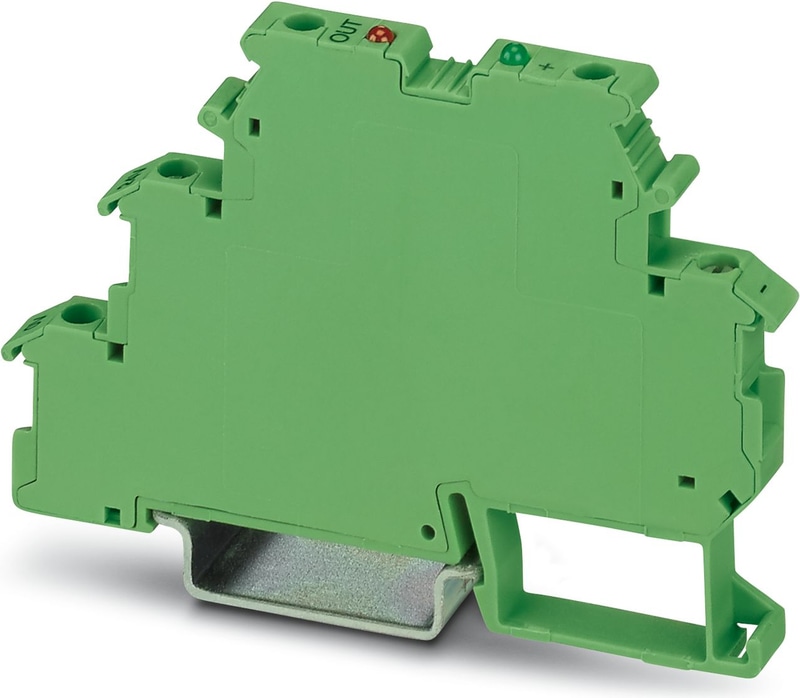

EIK1-SVN-24P - Solid-state relay module
Switching amplifier electronic terminal block, for inductive proximity sensors acc. to NAMUR, with light indicators for sensor signal and faults
- Bridging and labeling with standard terminal block accessories
- Error indication via LED
- Monitoring of initiator side for short circuits or wire breaks
- Status indication (high signal) via green LED
- Suitable resistance circuit to enable monitoring of mechanical switches
- 24 V/50 mA digital output
Technical Specifications
Notes
| Note on application | Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product family | DEK |
| Application | NAMUR proximity sensors |
Insulation characteristics: Air clearances and creepage distances
| Overvoltage category | III |
| Pollution degree | 2 |
Control circuit
| Nominal input voltage UN | 8.2 V DC ±10 % |
| Error indication | visual short-circuit and wire break control with LED (red) |
| Protective circuit | 12 V Zener diode; 12 V Zener diode |
| Transmission frequency | 1 kHz |
| Switching point | ≥ 2.1 mA (In conductive state) |
| Switching point | ≤ 1.2 mA (In blocking state) |
| Switching point | 6.3 mA ... 10 mA (in the event of a short-circuit) |
| Switching point | 0 mA ... 0.35 mA (In the event of a wire break) |
| Switching hysteresis | approx. 0.2 mA |
| Internal resistance | approx. 1 kΩ |
Output data
| Designation | Signal output |
| Contact switching type | 1 N/O contact |
| Design of digital output | electronic |
| Output nominal voltage | ≤ 100 mV (In conductive state) |
| Output nominal voltage | UVN - UR; in blocking state |
| Limiting Continuous Current | 50 mA |
| Voltage drop at max. limiting continuous current | ≤ 1.5 V (UR) |
| Protective circuit | 36 V Zener diode as free-wheeling diode; 36 V Zener diode as free-wheeling diode |
Input side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm |
Output side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm |
Dimensions
| Width | 6.2 mm |
| Height | 80 mm |
| Depth | 56 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Air clearances and creepage distances
| Standards/regulations | IEC 60664 |
| Standards/regulations | EN 61000-6-2 |
| Standards/regulations | EN 61000-6-4 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
