Official DistributorSKU
MPN
DEK-TR/INV
Weight
0.021 kg

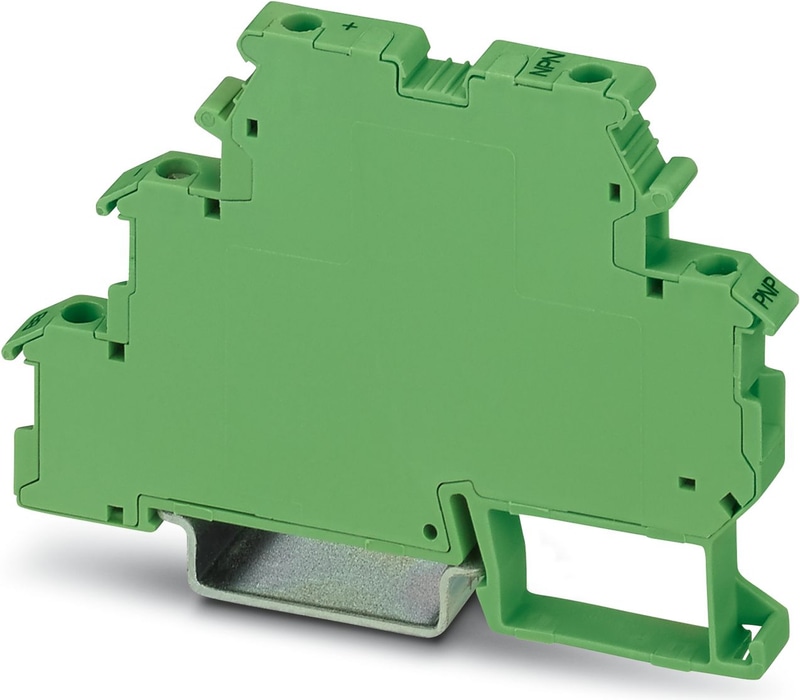

DEK-TR/INV - Switching amplifier
Inverter module. The inverter module inverts the signals of ground switching n-p-n transistor outputs into plus switching p-n-p outputs, and vice versa.
- The DEK-TR/INV inverter module inverts the signals of ground switching NPN transistor outputs into positive switching PNP outputs and vice versa
Technical Specifications
Notes
| Note on application | Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place. |
Product properties
| Product family | DEK |
| Application | Inverter module |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Maximum power dissipation for nominal condition | 4.8 W |
Supply
| Supply Voltage Range | 20 V DC ... 30 V DC |
Input data
| Typical input current at UN | 200 mA |
| Transmission frequency | 15 kHz |
NPN
| Switching threshold "1" signal voltage | < 5 V (at UV = 24 V; < (UV - 19 V)) |
| Switching threshold "0" signal, voltage | > 15 V (at UV = 24 V; > (UV - 9 V)) |
| Min. voltage input signal | -2 V |
| Max. voltage input signal | 26 V (at UV = 24 V; UV + 2 V) |
PNP
| Switching threshold "1" signal voltage | > 19 V |
| Switching threshold "0" signal, voltage | < 9 V |
| Min. voltage input signal | -2 V |
| Max. voltage input signal | 26 V (at UV = 24 V; UV + 2 V) |
Output data
| Continuous load current | 200 mA |
| Leakage current | < 1 mA |
| Residual voltage | < 1 V |
| Transmission frequency | 15 kHz |
| Contact switching type | 1 N/O contact |
| Output nominal voltage | max. ± 26 V |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 6.2 mm |
| Height | 80 mm |
| Depth | 56 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60947-5-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Accessories
