2920735
Official DistributorSKU
PHX2920735
Weight
0.027 kg

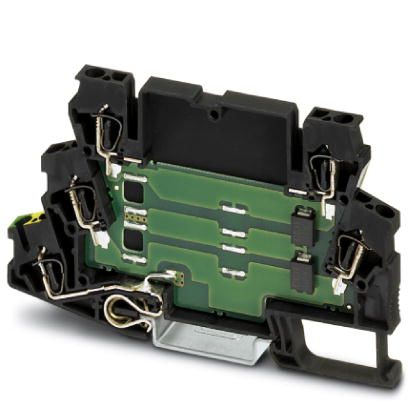

Surge protection device TT-ST-2/2-S-24DC
Spring cage modular terminal block with integrated surge protection, for assembly on NS 35/7.5, voltage UN 24 V DC, terminal width: 6.2 mm, cover width: 2.2 mm
Technical Specifications
Dimensions
| Height | 100 mm |
| Width | 6.2 mm |
| Depth | 63.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Degree of Protection | IP20 |
General
| Housing Material | PA 6.6 |
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Standards for cearances and creepage distances | EN 60664-1 |
| Mounting Type | DIN rail: 35 mm |
| Type | Double-level terminal block |
| Number of Positions | 2 |
| Direction of action | Line-Earth Ground |
Protective circuit
| IEC test classification | C1 |
| IEC test classification | C3 |
| VDE requirement class | C1 |
| VDE requirement class | C3 |
| Nominal voltage UN | 24 V DC |
| Maximum continuous voltage UC | 30 V DC |
| Maximum continuous voltage UC | 21 V AC |
| Rated current | 10 A (50 °C) |
| Operating effective current IC at UC | ≤ 5 µA (DC) |
| Operating effective current IC at UC | ≤ 20 µA (60 Hz) |
| Residual current IPE | ≤ 10 µA (DC) |
| Residual current IPE | ≤ 40 µA (60 Hz) |
| Nominal discharge current In (8/20) µs (line-earth) | 310 A (per path) |
| Total discharge current Itotal (8/20) µs | 620 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 62 A (per path) |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 45 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 45 V |
| Residual voltage at In (line-earth) | ≤ 48 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 48 V |
| Voltage protection level Up (line-earth) | ≤ 45 V (C1 - 250 A) |
| Response time tA (line-earth) | ≤ 1 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 1 MHz / 50 Ω) |
| Input attenuation aE, asym. | typ. 0.1 dB (≤ 150 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), asym. (GND) in 50 Ohm system | typ. 3 MHz |
| Cut-off frequency fg (3 dB), asym. (GND) in 150 Ohm system | typ. 500 kHz |
| Capacity (line-earth) | ≤ 2 nF |
| Surge protection fault message | none |
| Max. required back-up fuse | 10 A (T) |
| Impulse durability (line-earth) | C1 - 500 V / 250 A |
| Impulse durability (line-earth) | C3 - 25 A |
| Alternating current carrying capacity (line-earth) | 2 A (5x 1 s) |
Connection data
| Connection Method | Spring-cage connection |
| Connection method IN | Spring-cage |
| Connection method OUT | Spring-cage |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Standards and Regulations
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | EN 61643-21 |
| Standards/specifications | IEC 61643-21/A1 2008 |
| Standards/specifications | EN 61643-21/A1 2009 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact 2920735?
Proax is an authorized distributor of Phoenix Contact 2920735 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
