2920612
Official DistributorSKU
PHX2920612
MPN
DT-UFB-485/BS
Weight
0.334 kg

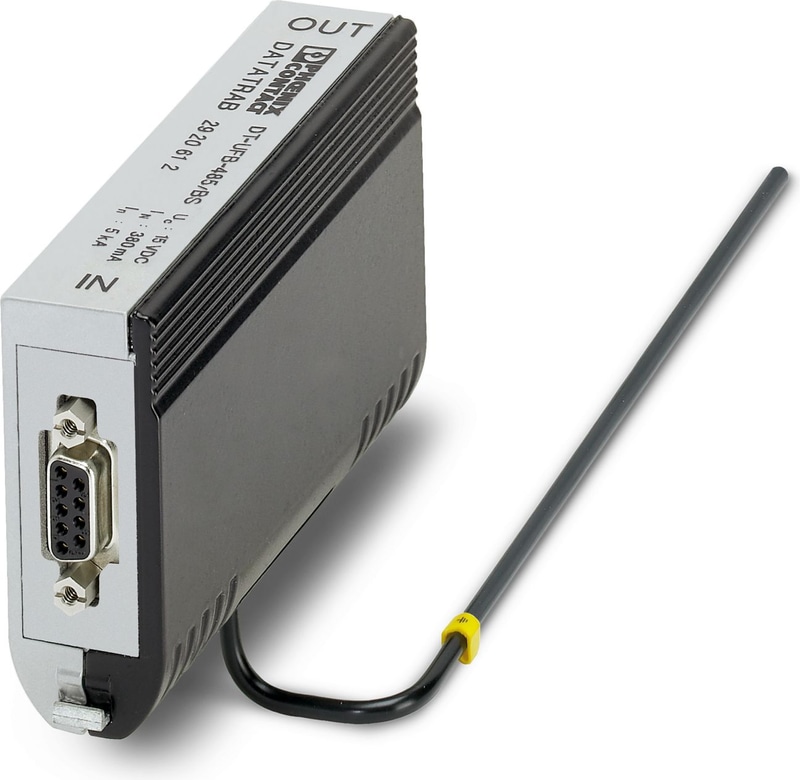

DT-UFB-485/BS - Surge protection device
9-pos. D-SUB attachment plug with surge protection for RS-485 interfaces. Can alternatively be snapped onto DIN rails.
- Easy network integration via D-SUB connection
- No signal interference with adapted protective circuit
- Can be installed in a control cabinet by removing the ground connection adapter
Technical Specifications
Product properties
| Product family | DATATRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Type | Attachment plug for DIN rail mounting |
| Number of Positions | 5 |
| Wire pairs per module | 2 |
Insulation characteristics
| Overvoltage category | II |
Connection data
| Connection Method | D-SUB-9 |
Dimensions
| Width | 25 mm |
| Height | 108 mm |
| Depth | 63 mm |
Material specifications
| Color | Silver |
| Color | black (RAL 9005) |
| Housing Material | Zinc die-cast |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Ground/Shield |
| Maximum continuous voltage UC | 12 V DC |
| Rated current | ≤ 380 mA (25 °C) |
| Operating effective current IC at UC | ≤ 1 µA |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs (line-line) | ≤ 5 kA |
| Nominal discharge current In (8/20) µs (line-ground) | ≤ 5 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-signalground) static | ≤ 25 V |
| Residual voltage at In (conductor-conductor) | ≤ 25 V |
| Residual voltage at In (conductor-ground) | ≤ 55 V |
| Residual voltage at In (line-signalground) | ≤ 25 V |
| Voltage protection level Up (line-line) | ≤ 30 V (B2 - 100 A) |
| Voltage protection level Up (line-line) | ≤ 30 V (C1 - 500 A) |
| Voltage protection level Up (line-line) | ≤ 40 V (C2 - 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 700 V (B2 - 100 A) |
| Voltage protection level Up (line-earth) | ≤ 700 V (C1 - 500 A) |
| Voltage protection level Up (line-earth) | ≤ 750 V (C2 - 5 kA) |
| Response time tA (line-line) | ≤ 100 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 30 MHz) |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 7 MHz / 150 Ω) |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 2 MHz / 600 Ω) |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | typ. 50 MHz |
| Resistance per path | 3.3 Ω 10 % |
| Surge protection fault message | none |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Impulse durability (line-line) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | D1 - 1 kA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
Standards and Regulations
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
Air clearances and creepage distances
| Standards/regulations | IEC 60664-1 / VDE 0110-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | DIN EN 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | DIN EN 61643-21 |
| Standards/specifications | DIN EN 61643-21 |
| Note | 2002 |
Mounting
| Mounting Type | Connection-specific attachment plug and DIN rail, 35 mm |
Accessories
VS-09-DSUB-20-LI-1,0 - Assembled D-SUB cable, shielded, 9-pos., stranded (7-wire), cable color: RAL 7000 (gray), secured using 4-40 UNC thread, IP20 protection, head 1 with socket shell 1 and straight cable outlet, head 2 with pin shell 1 and straight cable outlet, length: 1 m
Why Proax for Phoenix Contact 2920612?
Proax is an authorized distributor of Phoenix Contact 2920612 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
