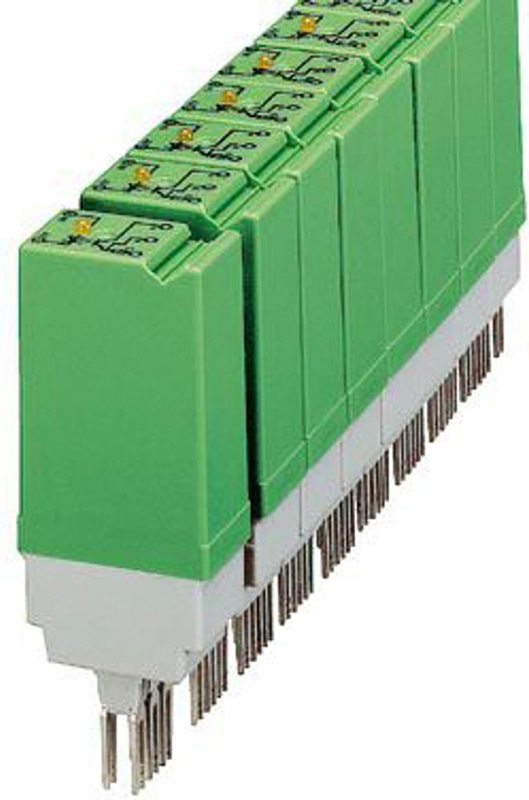

ST-OE3-120AC/ 48DC/100 - Solid-state relay
Pluggable input optocoupler, with light indicator and protection circuits in the input and output circuits, input: 120 V AC, output: 8 - 48 V DC/max. 100 mA, can be plugged on basic termination blocks
Technical Specifications
Electrical properties
| Test voltage (Input/output) | 2.5 kV AC (Input/output) |
Input data
| Nominal input voltage UN | 120 V AC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 108 V AC ... 132 V AC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 8 mA |
| Typical response time | 20 ms |
| Typical turn-off time | 20 ms |
| Status display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Surge protection |
| Transmission frequency | 3 Hz |
Output data
| Design of digital output | electronic |
| Output voltage range | 8 V DC ... 48 V DC |
| Limiting Continuous Current | 100 mA |
| Voltage drop at max. limiting continuous current | 1.2 V |
| Output circuit | 2-conductor floating, 3-conductor ground-referenced |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Protective circuit | Free running; Freewheeling diode |
| Output resistor | approx. 22 kΩ (for 3-wire connection) |
Dimensions
| Width | 20.8 mm |
| Height | 33 mm |
| Depth | 66.5 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 60664A |
| Standards/regulations | DIN VDE 0110 |
Mounting
| Mounting Position | any |
