Official DistributorSKU
MPN
MSTBO 2,5/ 2-G1L BK
Weight
0.001 kg
This product is Not Cancellable/Not Returnable
Series MSTBO

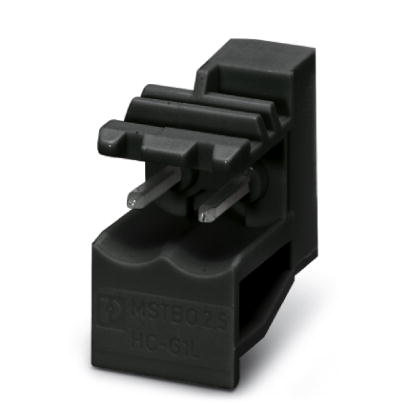

MSTBO 2,5/ 2-G1L BK - PCB header
PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBO 2,5/..-G1L, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on left side
- Plug-in direction orthogonal to the PCB
Technical Specifications
| Nominal Current (IN) | 12 A |
| Maximum Load Current | 12 A |
Why Proax for Phoenix Contact 2908951?
Proax is an authorized distributor of Phoenix Contact 2908951 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
