2884509
Official DistributorSKU
PHX2884509
MPN
ILB BT ADIO MUX-PANEL
Weight
1.084 kg
Series ILB-BT-ADIO-MUX-PANEL

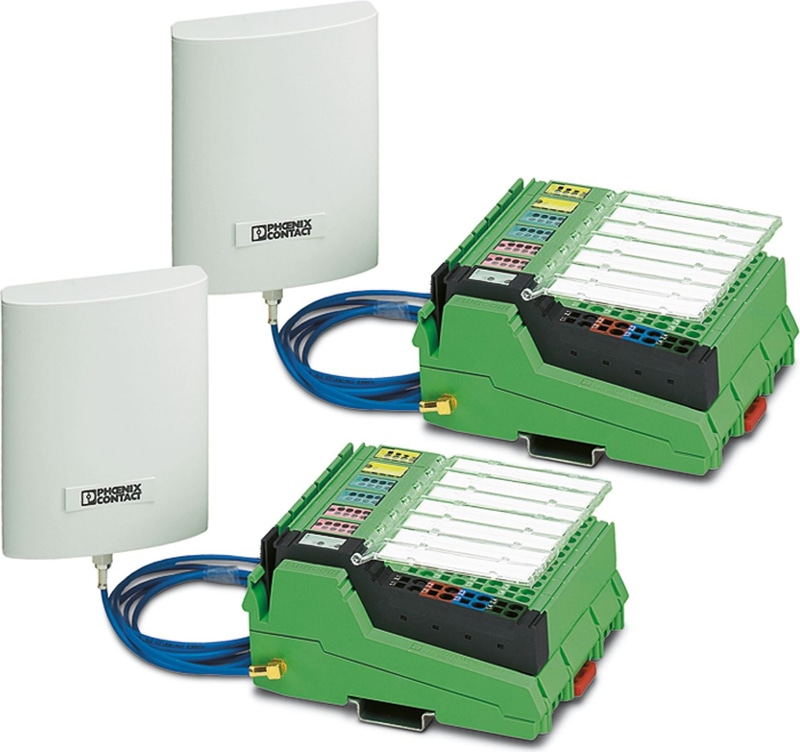

ILB BT ADIO MUX-PANEL - Wireless set
Wireless-MUX set, two modules with 16 digital inputs and outputs and 2 analog inputs and outputs (4 - 20 mA, 0 - 10 V) each, panel antennas with 1.0 m cable, 24 V DC supply voltage
- Transmission time ≥ 10 ms
- Range of up to 400 m outdoors
- Wireless diagnostics by means of bar graph
- Plug and play - startup without configuration
- It couldn't be simpler: unpack – connect – switch on
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product family | Inline |
| Type | Block design |
| MTBF | 465 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTBF | 140 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| Diagnostics messages | Short-circuit or overload of the digital outputs LED |
| Diagnostics messages | Wireless connection FS LED |
| Diagnostics messages | Logic and actuator voltage LED |
| Diagnostics messages | Link quality of the wireless connection 4 LEDs |
Electrical properties
| Maximum power dissipation for nominal condition | 2.4 W |
Supply: Module electronics
| Connection Method | Inline connector |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC (including ripple) |
| Supply current | < 100 mA |
Analog:
| Input name | Analog inputs |
| Description of the input | Single ended |
| Number of Inputs | 2 |
| Current Input Signal | 0 mA ... 20 mA |
| Voltage input signal | 0 V ... 10 V |
| Measured value resolution | 12 bits |
Digital:
| Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 |
| Number of Inputs | 16 |
| Number of Inputs | 16 |
| Connection Method | Spring-cage connection |
| Connection technology | 1-conductor |
| Filter time | 500 µs |
Analog:
| Output name | Analog outputs |
| Number of Outputs | 2 |
| DAC resolution | 12 bit |
| Current Output Signal | 0 mA ... 20 mA |
| Voltage output signal | 0 V ... 10 V |
Digital:
| Output name | Digital outputs |
| Connection Method | Spring-cage connection |
| Connection technology | 1-conductor |
| Number of Outputs | 16 |
| Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages |
| Maximum Output Current per channel | 500 mA |
Antenna
| Number | 1 |
| Connection Method | MCX (male) |
Functions
| Wireless licenses | Europe, additional countries in the e-shop |
| Country support | Australia (Special rule: Please contact the Product Manager) |
| Country support | Belgium |
| Country support | Bulgaria |
| Country support | Denmark |
| Country support | Germany |
| Country support | Estonia |
| Country support | Finland |
| Country support | France |
| Country support | Greece |
| Country support | Great Britain |
| Country support | Ireland |
| Country support | Iceland |
| Country support | Israel |
| Country support | Italy |
| Country support | Canada |
| Country support | Latvia |
| Country support | Liechtenstein |
| Country support | Lithuania |
| Country support | Luxembourg |
| Country support | Malta |
| Country support | Netherlands |
| Country support | Norway |
| Country support | Austria |
| Country support | Poland |
| Country support | Portugal |
| Country support | Romania |
| Country support | Russia (Special rule: Please contact the Product Manager) |
| Country support | Sweden |
| Country support | Switzerland |
| Country support | Singapore |
| Country support | Slovakia |
| Country support | Slovenia |
| Country support | Spain |
| Country support | South Africa |
| Country support | Czech Republic |
| Country support | Turkey |
| Country support | Hungary |
| Country support | USA |
| Country support | Cyprus (rep.) |
Wireless
| Designation | Bluetooth |
| Antenna Connection Method | MCX (female) |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Wireless Standard | Bluetooth 1.2 |
| Transmission power | 8 dBm (8 dBm, with automatic control) |
| Receiver sensitivity | -88.00 dBm |
Diagnostic messages
| Diagnostics | Short-circuit or overload of the digital outputs |
| Message | LED |
| Diagnostics | Wireless connection |
| Message | FS LED |
| Diagnostics | Logic and actuator voltage |
| Message | LED |
| Diagnostics | Link quality of the wireless connection |
| Message | 4 LEDs |
Dimensions
| Width | 95 mm |
| Height | 119.8 mm |
| Depth | 57 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 95 % |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Type | DIN rail mounting |
| Assembly instructions | PANEL directional wireless antenna, 8 dBi, with fixing bracket, 1 m cable |
