Phoenix Contact 2702875
AllIndustrial communication & NetworkingIndustrial EthernetWireless I/O

2702875

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2702875
MPN
ILB BT ADIO MUX
Weight
0.646 kg
This product is Not Cancellable/Not Returnable

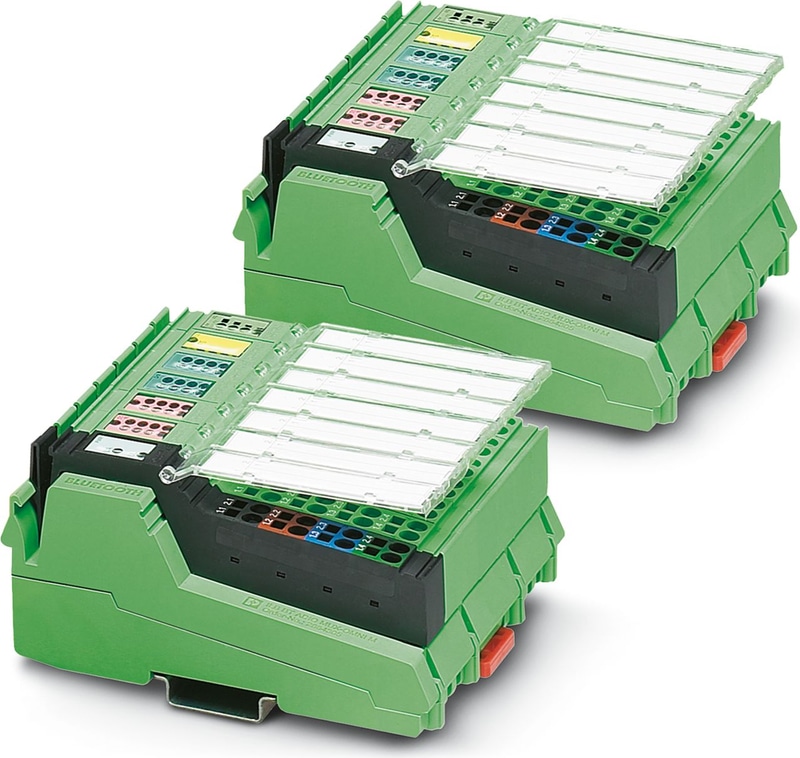

ILB BT ADIO MUX - Wireless set

Wireless MUX set, two modules with 16 digital inputs and outputs and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V) each, RSMA (female) antenna connection, without antennas

  • Wireless diagnostics by means of bar graph
  • Range of 50 m ... 100 m in industrial halls with omnidirectional antennas and up to 400 m outdoors with directional antennas
  • Quick connection establishment and signal transmission
  • Current Bluetooth 4.0 technology
  • Plug and play - startup without configuration
  • It couldn't be simpler: unpack – connect – switch on
Technical Specifications

Product properties

Product familyInline
ApplicationI/O
TypeBlock design
MTTF1458 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
MTTF557 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF219 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Diagnostics messagesShort-circuit or overload of the digital outputs LED
Diagnostics messagesWireless connection FS LED
Diagnostics messagesLogic and actuator voltage LED
Diagnostics messagesLink quality of the wireless connection 4 LEDs

Insulation characteristics

Overvoltage categoryII
Pollution degree2

Times

Delay time≤ 10 ms (Latency, typical)
Delay time≤ 800 ms (Failsafe function for wireless interruption)

Supply: Module electronics

Connection MethodInline connector
Supply Voltage24 V DC
Supply Voltage Range19.2 V DC ... 30.5 V DC (via power connector)
Current consumption60 mA (at 24 V DC, at 25 °C)
Protective circuitPolarity protection, surge protection

Analog:

Input nameAnalog inputs
Description of the inputSingle ended
Number of Inputs2
Current Input Signal0 mA ... 20 mA
Input resistance current input50 Ω
Voltage input signal0 V ... 10 V
Input resistance of voltage input130 kΩ
Measured value resolution12 bits
Protective circuitSurge voltage; Suppressor diodes in the analog inputs, current limitation via internal protective circuit

Digital:

Input nameDigital inputs
Number of Inputs16
Connection MethodSpring-cage connection
Connection technology1-conductor
Input voltage range "0" signal< 5 V
Input voltage range "1" signal> 15 V
Nominal input voltage UIN24 V DC
Typical input current per channel2.3 mA

Analog:

Output nameAnalog outputs
Number of Outputs2
DAC resolution12 bit
Current Output Signal0 mA ... 20 mA
Load/Output Load Current Output≤ 500 Ω
Voltage output signal0 V ... 10 V
Load/output load voltage output≥ 2 kΩ

Digital:

Output nameDigital outputs
Connection MethodSpring-cage connection
Connection technology1-conductor
Number of Outputs16
Protective circuitShort-circuit protection, overload protection, protected against reverse voltages
Output Current8 A
Maximum Output Current per channel500 mA
Nominal Output Voltage24 V DC
Output current when switched off≤ 10 µA (When not loaded, a voltage can be measured even at an output that is not set.)
Nominal load, inductive12 VA (1.2 H, 50 Ω)
Nominal load, lamp12 W
Nominal load, ohmic12 W (48 Ω)
Reverse voltage resistance to short pulsesReverse voltage proof
Behavior with overloadAuto restart
Behavior with inductive overloadOutput can be destroyed
Behavior at voltage switch-offThe output follows the power supply without delay
Overcurrent shut-down≥ 0.7 A

Connection data

Conductor cross section, rigid0.2 mm² ... 1.5 mm²
Conductor cross section, flexible0.2 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]... 16
Stripping length8 mm

Functions

Wireless licensesEurope, additional countries in the e-shop

Wireless

Modulation typeGFSK (Gaussian Frequency Shift Keying)
Antenna Connection MethodRSMA (female)
No. of channels40
Frequency Range2.402 GHz ... 2.48 GHz (ISM bandwidth)
Frequency band2.4 GHz
Wireless StandardBluetooth
Transmission power5 dBm
Receiver sensitivity -95.00 dBm

Diagnostic messages

DiagnosticsShort-circuit or overload of the digital outputs
MessageLED
DiagnosticsWireless connection
MessageFS LED
DiagnosticsLogic and actuator voltage
MessageLED
DiagnosticsLink quality of the wireless connection
Message4 LEDs

Dimensions

Width95 mm
Height123.4 mm
Depth57 mm
Note on dimensionswith connectors

Material specifications

Color (Housing)green (RAL 6021)
Material (Housing)PA 6.6-FR

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 60 °C
Degree of ProtectionIP20
Air pressure (operation)795 hPa ... 1080 hPa (up to 2000 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (up to 3500 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)95 % (non-condensing)
Permissible humidity (storage/transport)95 %

CE

CertificateCE-compliant

UL, USA/Canada

Identification508 Listed

Wireless approval, Europe

NoteRED 2014/53/EU

Wireless approval USA, FCC

IdentificationYG3ADIOMUX
NoteFCC directive, part 15.247

Wireless approval India, WPC

CertificateNR-ETA/5957

Wireless approval Japan, MIC

IdentificationJapan MIC (RF) ID:202-LSF002

Wireless approval Canada, IC

Certificate4720B-ADIOMUX
NoteISC directive RSS 210

Wireless approval Mexico, IFT

CertificateIFT RCPPHIL19-2130

Wireless approval South Africa, ICASA

CertificateTA-2006/032

KC approval for South Korea

CertificateMSIP-CRI-PCK-2884208

EMC data

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU

Electrostatic discharge

Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV (Test Level 3)
Discharge in air± 8 kV (Test Level 3)
CommentsCriterion B

Electromagnetic HF field

Standards/regulationsEN 61000-4-3
Frequency Range26 MHz ... 3 GHz (Test Level 3)
Field intensity10 V/m
CommentsCriterion A

Fast transients (burst)

Standards/regulationsEN 61000-4-4
Input± 2 kV (Test Level 3)
Signal± 2 kV (Signal line)
CommentsCriterion B

Surge current load (surge)

Standards/regulationsEN 61000-4-5
Input± 0.5 kV (symmetrical)
Input± 1 kV (asymmetrical)
Signal± 1 kV (Signal line, asymmetrical)
CommentsCriterion B

Conducted interference

Standards/regulationsEN 61000-4-6
Frequency Range0.15 MHz ... 80 MHz
CommentsCriterion A
Voltage10 V

Emitted interference

Emitted radio interference in acc. with EN 55011EN 55016-2-3 Class A industrial applications

Criteria

Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.

Standards and Regulations

Protection classIII
Free from substances that could impair the application of coatingin accordance with VW-AUDI-Seat central standard P-VW 3.10.7 57 65 0
Standard designationRED directive 2014/53/EU
Standards/specificationsEN 300328
Standards/specificationsEN 61000-6-4
Standards/specificationsEN 61000-6-2
Standards/specificationsEN 62311
Standards/specificationsEN 60950

Mounting

Mounting TypeDIN rail mounting
