2882381
Official DistributorSKU
PHX2882381
MPN
MNT-TAE D
Weight
0.201 kg
This product is Not Cancellable/Not Returnable

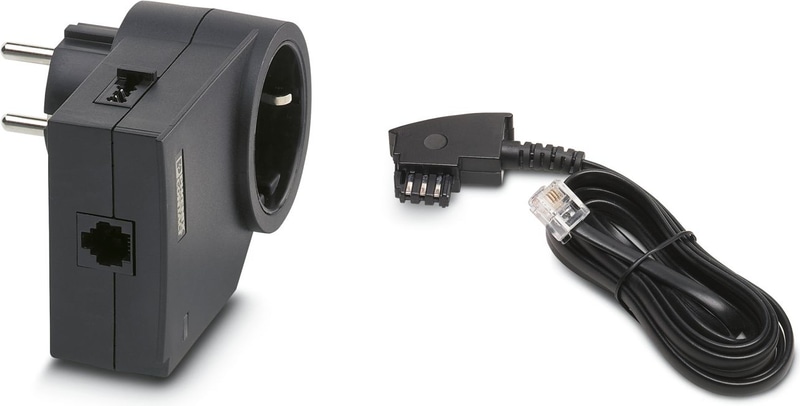

MNT-TAE D - Type 3 surge protection device
Socket attachment plug with surge protection for the power supply and signal connection of an end device with analog or digital telecommunications interface (VDSL up to 50 Mbps, on short paths (< 300 m) up to 80 Mbps). Cable is included.
- Optimal additional protection of the building installation for longer service life and increased availability of the end devices
- Industrial quality for residential buildings, thanks to compliance with international product standard
- Meets the most stringent safety requirements with thermal monitoring and additional fuses
- Special router protection, thanks to simultaneous protection of the power supply and the signals
Technical Specifications
Product properties
| Product family | MAINTRAB |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | Attachment plug |
| Number of Positions | 2 |
| For country-specific use in | D |
| Surge protection fault message | optical |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
| IEC test classification | III |
| IEC test classification | T3 |
| EN type | T3 |
| Number of Ports | One |
Connection data
| Connection Method | RJ12-/TAE 6 |
| Connection Method | Grounding plug/socket |
Dimensions
| Width | 63 mm |
| Height | 103 mm |
| Depth | 78 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 400 |
| CTI value of material | 600 |
| Insulating material | PA 6 |
| Housing Material | PA 6 |
Power supplies
| Direction of action | L/N-PE & Signal Line-Earth Ground |
| Nominal voltage UN | 230/400 V AC (TN/TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 275 V AC |
| Maximum continuous operating voltage UC (L-PE) | 360 V AC |
| Maximum continuous operating voltage UC (N-PE) | 360 V AC |
| Rated load current IL | 16 A (30 °C) |
| Residual current IPE | ≤ 5 µA |
| Standby power consumption PC | ≤ 1.00 VA |
| Reference test voltage UREF | 255.00 V AC |
| Combination wave UOC | 6 kV |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT (L-N) | 460 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-N) | 460 V AC (120 min / safe failure mode) |
| TOV behavior at UT (L-PE) | 460 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-PE) | 460 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 1455 V AC (200 ms / safe failure mode) |
| TOV behavior at UT (N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gG / B / C) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
Information technology
| Maximum continuous voltage UC | 200 V DC |
| Rated current | 150 mA (25 °C) |
| Operating effective current IC at UC | ≤ 150 µA |
| Standby power consumption PC | ≤ 1.00 VA |
| Residual current IPE | ≤ 2 µA |
| Insulation resistance Riso | ≥ 1 MΩ |
| Insulation resistance Riso | ≥ 1 GΩ |
| Nominal discharge current In (8/20) µs (line-line) | 1 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Max. discharge current Imax (8/20) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 35 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 200 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 360 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 900 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 360 V |
| Residual voltage at In (conductor-conductor) | ≤ 500 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 35 V |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 35 V |
| Voltage protection level Up (line-line) | ≤ 460 V (C2 - 1 kA) |
| Voltage protection level Up (line-line) | ≤ 350 V (C3 - 25 A) |
| Voltage protection level Up (line-earth) | ≤ 900 V (C2 - 2 kA) |
| Voltage protection level Up (line-earth) | ≤ 900 V (C3 - 100 A) |
| Response time tA (line-line) | ≤ 25 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | typ. 4 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 3 MHz |
| Cut-off frequency fg (3 dB), sym. in 600 Ω system | typ. 700 kHz |
| Capacity (core-core) | typ. 1 nF |
| Capacity (core-earth) | typ. 5 pF |
| Alternating current carrying capacity (line-line) | 250 mA - 1 s |
| Alternating current carrying capacity (line-earth) | 10 A - 1 s |
| Pulse reset time (line-line) | ≤ 15 ms |
Ambient conditions
| Degree of Protection | IP20 (Child-proofing) |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2019 |
| Standards/specifications | EN 61643-21 |
| Note | A2:2013 |
| Standards/specifications | IEC 61643-21 |
| Note | A2:2012 |
Mounting
| Mounting Type | Plugging into the mains socket |
