2857099
Official DistributorSKU
PHX2857099
MPN
MNT-TAE D/WH
Weight
0.147 kg
Series MNT-TAE-D-WH

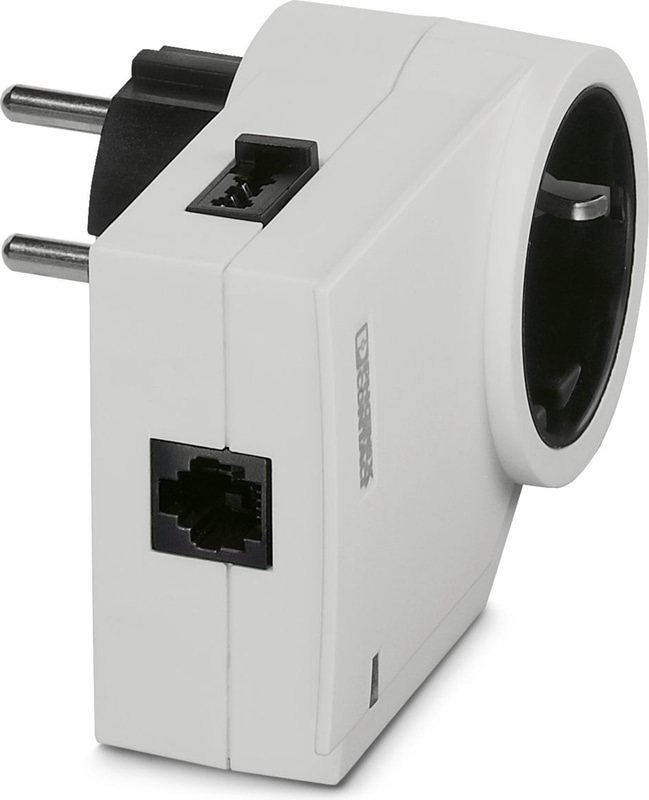

MNT-TAE D/WH - Type 3 surge protection device
Socket attachment plug with surge voltage device protection for the power supply unit and signal connection for a terminal device with analog telecommunications interface.
Technical Specifications
Product properties
| IEC test classification | C2 + C3 |
| VDE requirement class | C2 + C3 |
| Type | Attachment plug |
| For country-specific use in | D |
| Surge protection fault message | optical |
| EN type | T3 |
Connection data
| Connection Method | RJ12-/TAE 6 |
Dimensions
| Width | 63 mm |
| Height | 79 mm |
| Depth | 103.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Power supplies
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Maximum continuous voltage UC | 250 V AC |
| Residual current IPE | ≤ 1 µA |
| Operating effective current IC at UC | ≤ 4 mA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Maximum discharge current Imax (8/20) µs | 5 kA (total current) |
| 100 % lightning impulse sparkover voltage (1.2/50) µs (L-PE) | ≤ 1.1 kV |
| Energy absorption symmetrical | 80 J |
| Enery absorption, asymmetrical | 40 J |
| Voltage protection level Up (L-N) | ≤ 1.5 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| Residual voltage at In | ≤ 900 V |
| Residual voltage at In | ≤ 900 V |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
Information technology
| Maximum continuous voltage UC (line-earth) | 200 V DC |
| Nominal discharge current In (8/20) µs (line-line) | 1.1 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 360 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | 450 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 360 V |
| Output voltage limitation at 1 kV/µs (line-signalground) static | ≤ 450 V |
| Residual voltage at In (conductor-conductor) | ≤ 35 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Response time tA (line-line) | ≤ 25 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Cut-off frequency fg (3 dB), sym. in 600 Ω system | 700 kHz |
Ambient conditions
| Degree of Protection | IP20, child-proof |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | C2 + C3 |
Standards Information technology specification
| Standards/regulations | IEC 61643-1 |
| Standards/regulations | E DIN VDE 0675-6/A1 |
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | Plugging into the mains socket |
