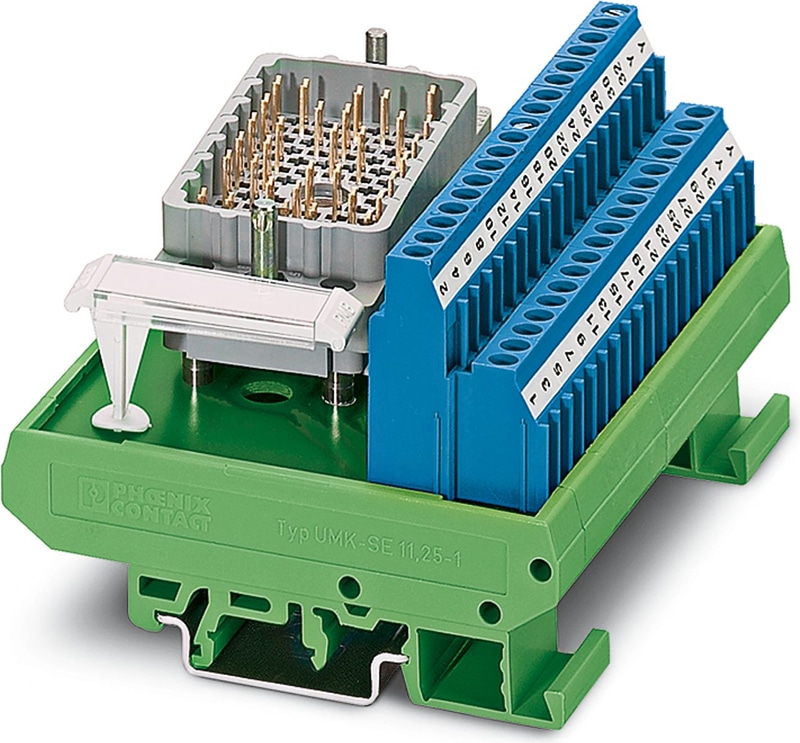

UMK- EC90/32/EX-XUR - Interface module
Interface module, connection 1: Screw connection, connection 2: ELCO connector 1x 32-position (Pin strip type 8016 (EEx i protection), right)
Technical Specifications
Product properties
| Number of Positions | 32 |
Electrical properties
| Nominal voltage UN | max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC) |
| Max. current carrying capacity per branch | 500 mA |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | ELCO connector |
| Coding | 1-1 |
| Number of Connections | 1 |
| Number of Positions | 32 |
| Note | Pin strip type 8016 (EEx i protection), right |
Signaling
| Status display present | No |
Item dimensions
| Width | 101.3 mm |
| Height | 77 mm |
| Depth | 58.5 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | DIN EN 60079-11 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing. |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
