Phoenix Contact 2910345
AllCircuit ProtectionProtectionSurge Protection
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
VAL-US-48/65/1+0-FM
Weight
0.156 kg
Series VAL-US

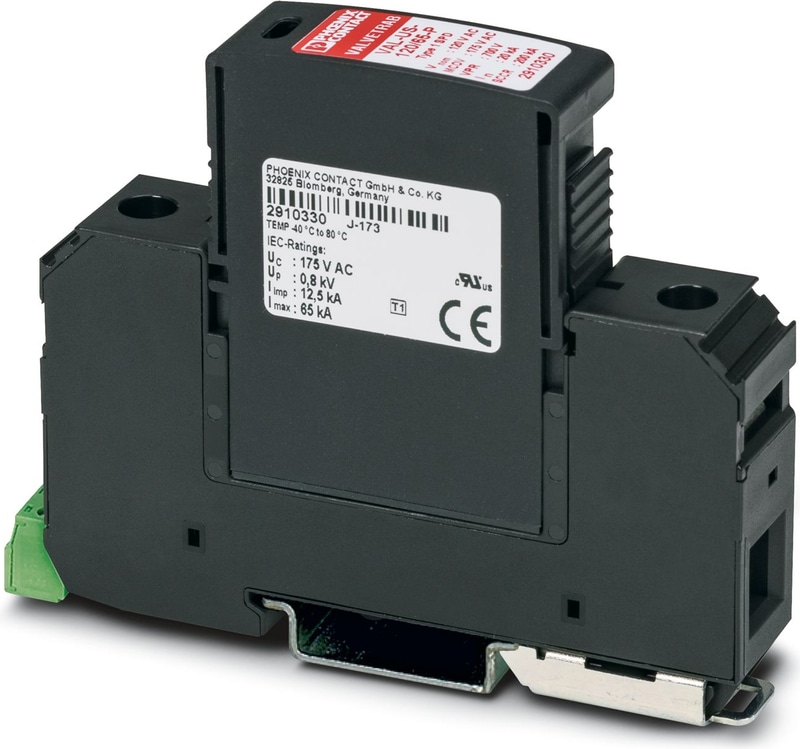

VAL-US-48/65/1+0-FM - Type 1 surge protection device

Surge protective device, single channel with remote indicator contact for 48 V DC.

Technical Specifications

Product properties

Product familyVALVETRAB US
IEC test classificationI / II
IEC test classificationT1 / T2
EN typeT1 / T2
IEC power supply systemDC
TypeDIN rail module, two-section, divisible
Number of Positions1
Surge protection fault messageOptical, remote indicator contact

Insulation characteristics

Overvoltage categoryIII
Pollution degree2

Indicator/remote signaling

Connection nameRemote fault indicator contact
Switching functionChangeover contact
Operating Voltage5 V AC ... 250 V AC
Operating Voltage30 V DC
Operating current5 mA AC ... 1.5 A AC
Operating current1 A DC (30 V DC)

Connection data

Connection MethodScrew connection
Screw threadM5
Tightening torque4.5 Nm (1.5 mm² ... 16 mm²)
Tightening torque4.5 Nm (25 mm² ... 35 mm²)
Stripping length16 mm
Conductor cross section flexible min.1.5 mm²
Conductor cross section flexible max.25 mm²
Conductor cross section, rigid min.1.5 mm²
Conductor cross section, rigid max.35 mm²
Conductor cross section flexible1.5 mm² ... 25 mm²
Conductor cross section rigid1.5 mm² ... 35 mm²
Conductor cross section AWG14 ... 2 (UL)

Remote fault indicator contact

Connection MethodScrew connection
Screw threadM2
Tightening torque0.25 Nm
Stripping length7 mm
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16

Dimensions

Width17.6 mm
Height96.8 mm
Depth77.5 mm (incl. DIN rail 7.5 mm)
Horizontal pitch1 Div.

Material specifications

Colorblack (RAL 9005)
Flammability rating according to UL 94V-0
CTI value of material600
Insulating materialPA 6.6/PBT
Material groupI
Housing MaterialPA 6.6
Housing MaterialPBT

Protective circuit

Mode of protection(DC+) - (DC-)
Direction of action1L-GND
Nominal voltage UN60 V AC ±10 % (TN-C)
Nominal voltage UN60 V DC ±10 %
Nominal voltage UN-48 V DC ±10 % (RRH)
Maximum continuous voltage UC100 V DC
Rated load current IL80 A
Residual current IPE≤ 0.6 mA
Nominal discharge current In (8/20) µs12.5 kA
Total discharge current Itotal (10/350) µs12.5 kA
Short-circuit current rating ISCCR5 kA
Voltage protection level Up≤ 0.4 kV
Residual voltage Ures≤ 0.4 kV (at In)
Residual voltage Ures≤ 0.35 kV (at 10 kA)
Residual voltage Ures≤ 0.3 kV (at 5 kA)
Residual voltage Ures≤ 0.25 kV (at 3 kA)
TOV behavior at UT130 V DC (5 s / withstand mode)
Response time tA≤ 25 ns
Max. backup fuse with V-type through wiring80 A (gG)
Max. backup fuse with branch wiring160 A (gG)

Ambient conditions

Degree of ProtectionIP20 (only when all terminal points are used)
Ambient Temperature (Operation)-40 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m (amsl)
Permissible humidity (operation)5 % ... 95 %
Shock (operation)30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (Operation)7.5g (10 ... 500 Hz / 2.5 h / X, Y, Z)

UL specifications

Maximum continuous operating voltage MCOV100 V DC
Short-circuit current rating (SCCR)5 kA
Voltage protection rating VPR400 V
UL typetype 1
Nominal discharge current In20 kA
Maximum Surge Current per Phase65 kA
Mode of protection(DC+) - (DC-)
Nominal Voltage48 V DC
Power distribution systemDC
SPD Type1

UL indicator/remote signaling

Operating Voltage125 V AC
AC operating current1 A AC

UL connection data

Tightening torque30 lbf-in.
Conductor cross section AWG14 ... 2

Air clearances and creepage distances

Standards/regulationsEN 60664-1 / EN 61643-11
Standards/specificationsIEC 61643-11
Note2011
Standards/specificationsEN 61643-11
Note2012

Mounting

Mounting TypeDIN rail: 35 mm
