2910103
Official DistributorSKU
PHX2910103
MPN
FLKM-1771-WG/SMKDS
Weight
0.278 kg
Series FLKM

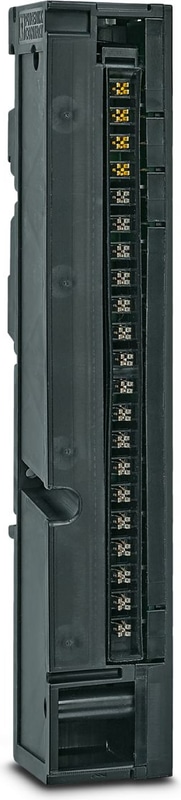

FLKM-1771-WG/SMKDS - Adapter
Migration adapter for converting Allen Bradley PLC-5 (1771-WG) to screw connection.
Technical Specifications
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | 264 V AC/DC |
| Max. permissible current | 2 A (per path) |
| Max. permissible total current | 42 A |
| Nominal operating mode | 100% operating factor |
| Mains frequency | 50/60 Hz |
| Rated Insulation Voltage | 280 V |
| Rated surge voltage | 4 kV |
Allen-Bradley PLC-5
| Connection Method | Plug-in connection |
| Connection Method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Number of Connections | 1 |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.14 mm² ... 0.75 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.14 mm² ... 0.75 mm² |
| Conductor cross section flexible (2 conductors with same cross section) | 0.25 mm² ... 0.5 mm² (Ferrules without plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) |
| Conductor cross section AWG | 26 ... 16 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Item dimensions
| Width | 35 mm |
| Height | 227 mm |
| Depth | 60 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (Above sea level) |
| Permissible humidity (operation) | 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
UL, USA/Canada
| Identification | UL Listed UL 61010-2-201 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
