2910094
Official DistributorSKU
PHX2910094
MPN
FLKM-1771-WH/S7-522-5FH/0,5M
Weight
0.566 kg
Series FLKM

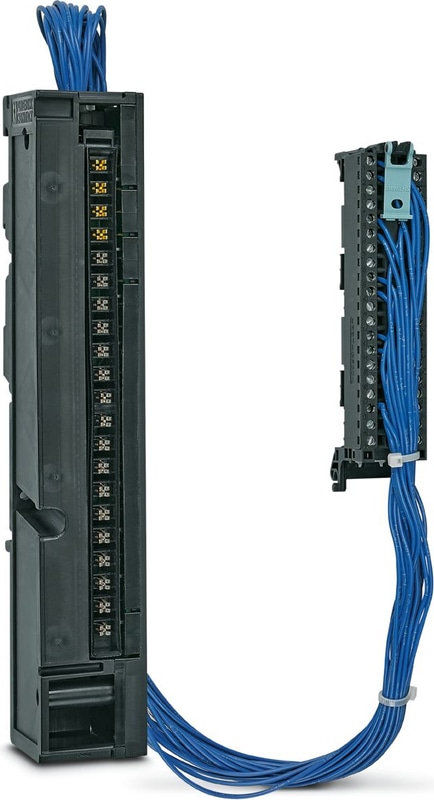

FLKM-1771-WH/S7-522-5FH/0,5M - Adapter
Migration adapter for converting Allen Bradley PLC-5 (1771-WH) to Siemens SIMATIC® S7-1500 front connector. 1771-OAD / 1771-OMD to 6ES7 522-5FH00-0AB0 conversion
Technical Specifications
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Max. permissible operating voltage | 264 V AC/DC |
| Max. permissible current | 2 A (per path) |
| Max. permissible total current | 42 A |
| Nominal operating mode | 100% operating factor |
| Mains frequency | 50/60 Hz |
| Rated Insulation Voltage | 280 V |
| Rated surge voltage | 4 kV |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771-OAD |
| Suitable I/O card | 1771-OMD |
Supported controller SIEMENS S7-1500
| Suitable I/O card | 6ES7522-5FH00-0AB0 |
Allen-Bradley PLC-5
| Connection Method | Plug-in connection |
S7-1500-Adapter
| Connection Method | Plug-in connection |
| Number of Connections | 1 |
Item dimensions
| Width | 101 mm |
| Height | 227 mm |
| Depth | 68.78 mm |
Cable
| Length | 0.5 m |
Cable/line
| Number of Positions | 21 |
| Shielded | no |
| Conductor type | Round cable set |
| AWG Signal Line | 21 |
| Conductor Cross Section | 21x 0.5 mm² |
| Outer sheath, material | PVC |
| External sheath, color | blue |
| Conductor material | Bare Cu litz wires |
| Halogen-free | no |
| Flame resistance | UL VW-1 |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (Above sea level) |
| Permissible humidity (operation) | 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
UL, USA/Canada
| Identification | UL Listed UL 61010-2-201 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
