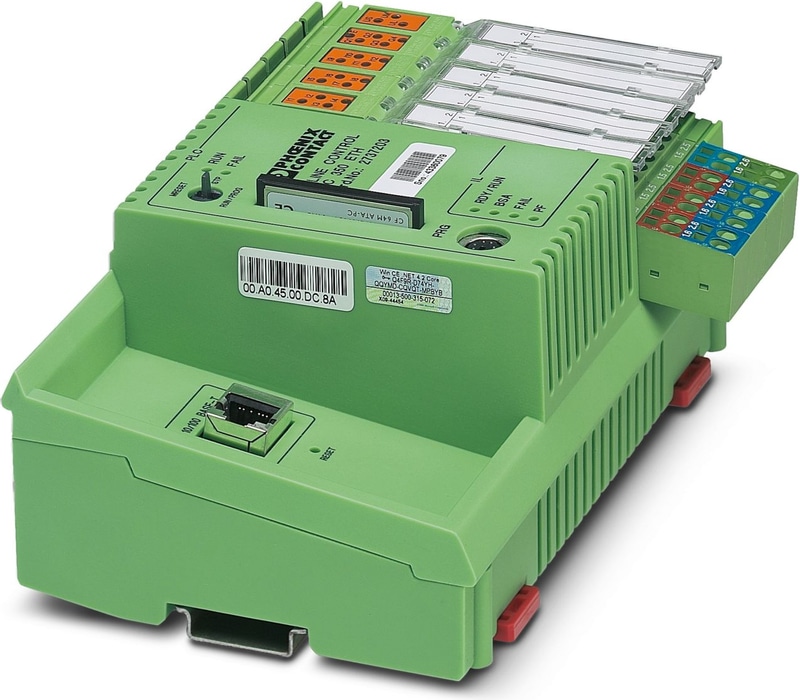

ILC 350 PN - Controller
Inline Controller with PROFINET interface for coupling to other controllers and systems, with programming options according to IEC 61131-3, complete with plug and labeling field.
- Integrated web server for visualization with WebVisit
- FTP server
- Flash file system
- Complete fieldbus master (8192 I/O points)
- Numerous protocols supported such as: HTTP, FTP, SNTP, SNMP, SMTP, SQL, MySQL, etc.
- Integrated Ethernet interface
- Integrated PROFINET controller
- Engineering with PC Worx (IEC 61131-3)
Technical Specifications
Product properties
| Product family | Inline |
| Type | Inline format with alignable I/Os |
Display
| Diagnostics display | No |
System properties
| Processor | 400 MHz |
| Retentive data storage | 64 kByte (NVRAM) |
IEC 61131 runtime system
| Program Memory | typ. 1 Mbyte |
| Data storage system | 2 Mbyte |
| Number of control tasks | 16 |
INTERBUS-Master
| Amount of Process Data | max. 8192 bit (INTERBUS) |
| Number of supported devices | max. 512 (in total, of which 254 are remote bus devices/bus segments) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 62 |
| Number of supported branch terminals with remote bus branch | 15 |
PROFINET
| Device function | PROFINET-Controller |
| Specification | Version 1.1 |
| Update rate | min. 1 ms |
Function
| Diagnostics display | No |
| Controller redundancy | yes |
| Safety function | No |
Local diagnostics
| Designation | LNK, ACT, 100 |
| Monitored function | Higher-level network |
| Optical representation | LED |
Functionality
| Programming languages supported | Programming in acc. with IEC 61131-3 |
System requirements
| Engineering tool | PC Worx |
| Diagnostics tool | DIAG+ from version 1.14 |
Electrical properties
| Local diagnostics | LNK, ACT, 100 Higher-level network LED |
| Local diagnostics | FC RUN, FAIL IEC 61131 runtime system LED |
| Local diagnostics | RDY/RUN, BSA, FAIL, PF INTERBUS master LED |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 6 W |
Supply
| Supply Voltage | 24 V DC ±5 % |
| Supply Voltage Range | 20.4 V DC ... 30 V DC |
| Residual ripple | ± 5 % |
| Typical current consumption | 250 mA (no local bus device connected during idling, bus inactive) |
Real-time clock
| Realtime Clock | Integrated (battery backup) |
Potentials
| Supply Voltage | 7.5 V DC ±5 % |
| Supply Voltage | 24 V DC -15 % / +20 % |
| Supply Voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current draw | max. 8 A DC |
| Supply Voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current draw | max. 5 A |
Digital:
| Input name | Digital inputs |
| Description of the input | Eight fast inputs, interrupt input |
| Number of Inputs | 12 |
| Connection Method | Inline potential distributor |
| Connection technology | 2-, 3-, 4-conductor |
| Output name | Digital outputs |
| Connection Method | Spring-cage connection |
| Connection technology | 2-, 3-, 4-conductor |
| Number of Outputs | 4 |
| Output Voltage | 24 V DC |
| Maximum Output Current per channel | 500 mA |
Inline connector
| Connection Method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Interfaces
| Web server | No |
Ethernet 10Base-T/100Base-TX
| Bus system | RJ45 |
| Number of interfaces | 1 |
| Connection Method | RJ45 jack |
| Transmission Speed | 10/100 Mbps |
| No. of channels | 1 |
INTERBUS local bus (master)
| Number of interfaces | 1 |
| Connection Method | Inline data jumper |
| Transmission Speed | 500 kBaud / 2 MBaud (can be switched) |
Parameterization/programming/diagnostics
| Bus system | RS-232 |
| Number of interfaces | 1 |
| Connection Method | 6-pos. MINI DIN socket (PS/2) |
| Transmission physics | Copper |
| No. of channels | 1 |
Dimensions
| Width | 182 mm |
| Height | 140.5 mm |
| Depth | 71.5 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (Operation) | 5g, accordance to IEC 60068-2-6 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
AX OPC SERVER - AX OPC SERVER, communication interface for OPC-capable visualization with PC WORX-based controls.
PC WORX DEMO, Software package for PC-based automation solutions. PC WORX DEMO contains all 5 IEC languages with MSFC compiler. Max. 16 bytes of input and output data can be used with the demo version. It is available free of charge and does not require a license key. It is part of the AUTOMATIONWORX Software Suite, which you can download under “Downloads
CF FLASH 256MB PDPI BASIC, Program and configuration memory, plug-in, 256 MB with license key for licensing the PDPI - BASIC function block for precise multi-channel controllers with self-optimization, additional functions: e.g., for heating and cooling functions or hydraulic movements.- CF FLASH 256MB PDPI PRO, Program and configuration memory, plug-in, 256 MB with license key for licensing the PDPI - PRO function block for precise multi-channel controllers with self-optimization, additional functions: e.g., for setpoint processing, for heating and cooling functions.
