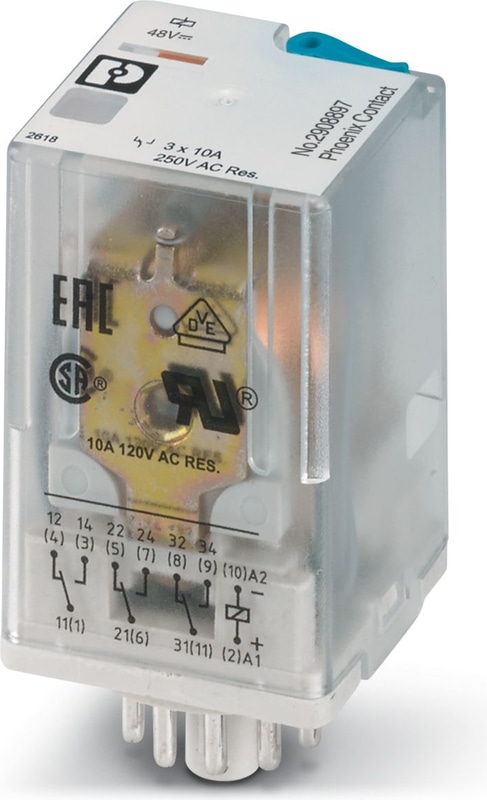

REL-OR3/LDP-48DC/3X21 - Single relay
Plug-in octal relays with power contacts, 3 changeover contacts, test button, freewheeling diode, mechanical switching position indicator, polarity: A1+, A2-, input voltage: 48 V DC
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10⁷ cycles |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.65 W |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Contact/contact) | 2 kVrms (50 Hz, 1 min., contact/contact) |
| Test voltage (Changeover contact/changeover contact) | 2 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 4 kV |
Coil side
| Nominal input voltage UN | 48 V DC |
| Input voltage range | 40.8 V DC ... 52.8 V DC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 31 mA |
| Input power dissipation for UN | 1.5 W |
| Typical response time | 18 ms |
| Typical release time | 20 ms |
| Protective circuit | Freewheeling diode |
| Status display | Yellow LED |
Switching
| Contact switching type | 3 changeover contacts |
| Type of switch contact | Single contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 10 V (At 24 mA) |
| Limiting Continuous Current | 10 A |
| Maximum Inrush Current | 30 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 124 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 108 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 52 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 48 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 2500 VA (for 250 V AC) |
| Switching capacity min. | 0.24 W |
| Switching capacity | 2 A (at 24 V, DC13) |
| Switching capacity | 0.22 A (at 120 V, DC13) |
| Switching capacity | 0.11 A (at 250 V, DC13) |
| Switching capacity | 3 A (at 24 V, AC15) |
| Switching capacity | 3 A (at 120 V, AC15) |
| Switching capacity | 1.5 A (at 240 V, AC15) |
Connection data
| Connection Method | Plug-in connection |
Dimensions
| Width | 35 mm |
| Height | 35 mm |
| Depth | 54.4 mm |
Ambient conditions
| Degree of Protection | RT I |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Corrosive gas test
| Identification | ISA-S71.04. G3 Harsh Group |
| Identification | EN 60068-2-60 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 61810 |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2908897?
Proax is an authorized distributor of Phoenix Contact 2908897 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
