2906451
Official DistributorSKU
PHX2906451
MPN
PLT-T3-IT-230-P
Weight
0.041 kg
Series PLT-T3

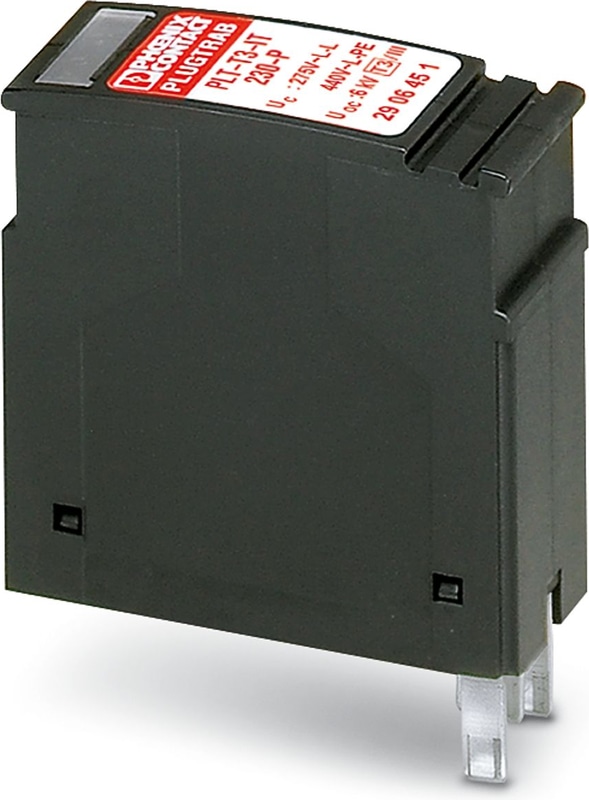

PLT-T3-IT-230-P - Type 3 surge protection plug
Replacement plug for device protection in IT systems from the PLUGTRAB product series. 230 V nominal voltage.
Technical Specifications
Product properties
| IEC power supply system | IT |
| Type | Male |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
| IEC test classification | III |
| IEC test classification | T3 |
| EN type | T3 |
| Number of Ports | One |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 52 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6 |
| Housing Material | PA 6.6 |
Protective circuit
| Mode of protection | L-L |
| Mode of protection | L-PE |
| Direction of action | 1L-N & N-PE |
| Nominal voltage UN | 230 V AC (IT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-L) | 275 V AC |
| Maximum continuous operating voltage UC (L-N) | 275 V AC |
| Maximum continuous operating voltage UC (L-PE) | 440 V AC |
| Rated load current IL | 16 A (60 °C) |
| Residual current IPE | ≤ 1 µA |
| Standby power consumption PC | ≤ 340.00 mVA |
| Reference test voltage UREF | 255.00 V AC |
| Nominal discharge current In (8/20) µs | 3 kA |
| Maximum discharge current Imax (8/20) µs | 8 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up (L-L) | ≤ 1.2 kV |
| Voltage protection level Up (L-N) | ≤ 1.2 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Residual voltage at Iamax, (L-PE) | ≤ 1 kV (at 1 kA) |
| Residual voltage at Iamax, (L-PE) | ≤ 1.5 kV (at UOC) |
| TOV behavior at UT (L-PE) | 440 V AC (120 min / withstand mode) |
| TOV behavior at UT (L-PE) | 1455 V AC (200 ms / safe failure mode) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (MCB B) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
| Max. backup fuse with branch wiring | 16 A (MCB B) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
