2905935
Official DistributorSKU
PHX2905935
MPN
UM-FLK10/AI/FU/ROC800
Weight
0.179 kg
Series UM-FLK

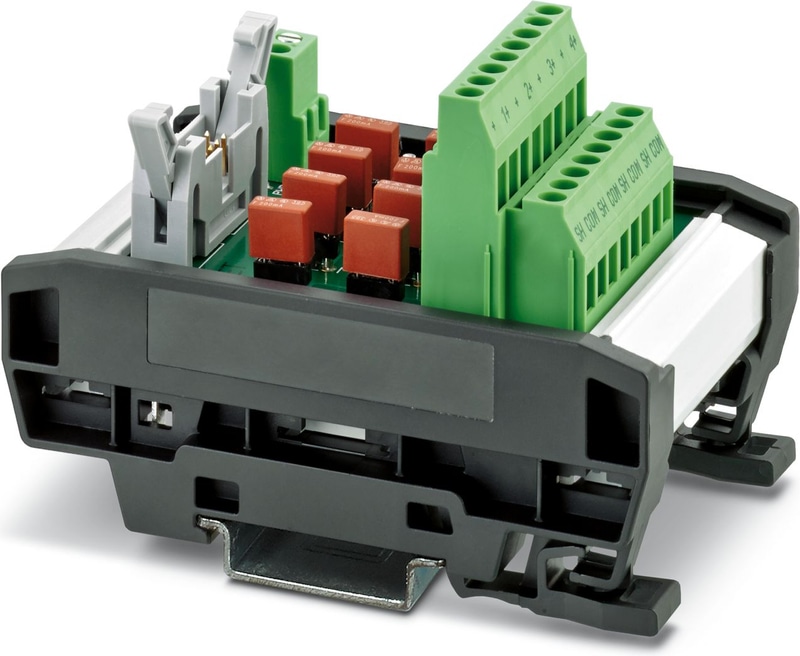

UM-FLK10/AI/FU/ROC800 - Passive module
VARIOFACE module intended for use with the ROC800 controller analog input cards. UL recognized to Class I, Div. 2.
- Two-level screw terminals for field wiring
- Per channel pluggable fusing, TE5 style, 200 mA
- FLK10 connection on the control side
- Integrated switching of 250 Ω resistor for current to voltage applications
- UM-PRO housing with grounding
- Per channel blown fuse indication
- Tested for continuity
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Number of Positions | 16 |
| No. of channels | 8 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Supported controller EMERSON ROC800
| Suitable I/O card | ROC800 AI |
Field level
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Number of Positions | 16 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 10 |
| Pitch | 2.54 mm |
Signaling
| Status display present | Yes, if the fuse fails |
Item dimensions
| Width | 69 mm |
| Height | 92.3 mm |
| Depth | 65.5 mm |
Material specifications
| Housing insulation material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
