2800617
Official DistributorSKU
PHX2800617
MPN
LM-S-C-3LS
Weight
0.696 kg

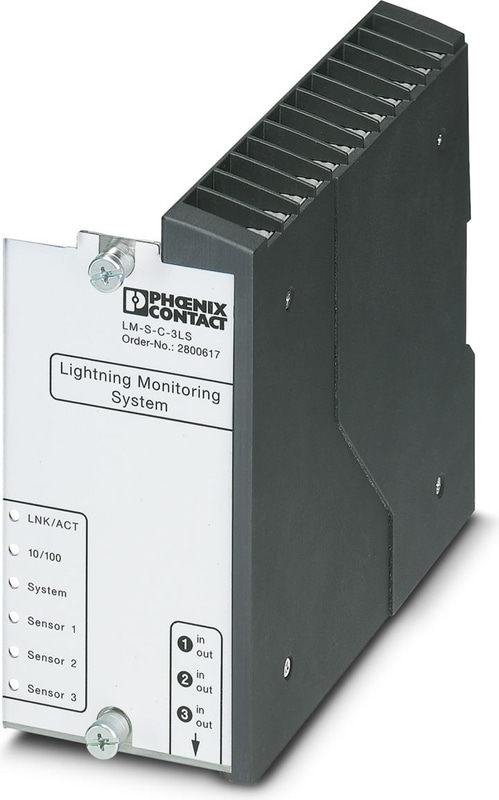

LM-S-C-3LS - Lightning monitoring system
O/E module for live monitoring system for the continuous detection and evaluation of lightning strikes.
Technical Specifications
Product properties
| Product family | LM-S |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Evaluation unit
| Operating Voltage | 3.3 V DC |
| Operating Voltage | + 5 V DC |
| Operating Voltage | - 5 V DC |
| Detectable values (current strength) | 5.00 kA ... 400.00 kA |
Evaluation unit Sensor interfaces
| Interface | O/E module |
| Number of Ports | 3 |
O/E converter Interfaces
| Interface | Fiber optic interface |
| Number of Ports | 3 |
| Connection Method | B-FOC (ST®) |
O/E converter Function
| Basic Functions | Plug-in I/O module as fiber optic port |
| Status and diagnostic indicators | Via LM-S evaluation unit |
Sensor
| Detectable values (current strength) | ± 5.00 kA ... 400.00 kA |
Typical characteristics
| Rated current IN | 300 mA |
Dimensions
| Width | 70 mm |
| Height | 185 mm |
| Depth | 181.5 mm |
Material specifications
| Color | Silver |
| Color | black (RAL 9005) |
| Housing Material | Stainless steel 1.4016 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Standards and Regulations
| Standards/specifications | EN 61326-1 |
| Note | 2013 |
Mounting
| Mounting Type | Pluggable (slot) |
Accessories
