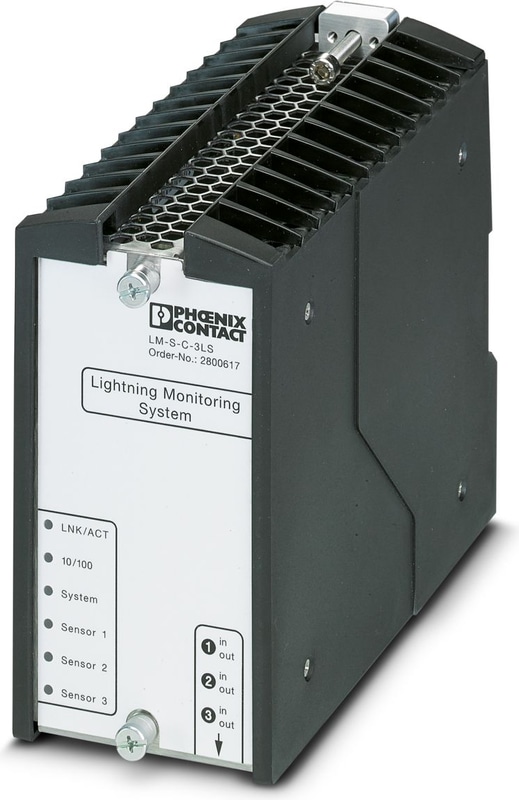

LM-S-A/C-3S-ETH - Lightning monitoring system
Evaluation unit for the live monitoring system for the continuous detection and evaluation of lightning strikes. Up to three optical lightning sensors can be connected.
- Evaluation and storage of sensor data
- Realtime analysis and exact point of time allocation
- Status and diagnostic indicators
- Communication via Ethernet
- Operation and configuration via web interface
Technical Specifications
Product properties
| Product family | LM-S |
| Type | DIN rail module, one-piece |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Current consumption | ≤ 10 W (Ready for operation, LED status <50%) |
| Nominal voltage UN | 24 V DC |
Indicator/remote signaling
| Switching function | N/C contact, 1-pos. |
| Maximum operating voltage Umax DC | 60 V DC |
Evaluation unit
| Operating Voltage | 24 V DC ±4 V |
| Operating current | max. 500 mA |
| Detectable values (current strength) | 5.00 kA ... 400.00 kA |
Evaluation unit Ethernet ports
| Interface | Ethernet |
| Number | 1 |
| Connection Method | RJ45 |
| Transmission Speed | 10/100 Mbps |
Evaluation unit Sensor interfaces
| Interface | O/E module |
| Number of Ports | 3 |
| Connection Method | Rack for plug-in I/O module |
Evaluation unit Function
| Basic Functions | Evaluation and communication of sensor data |
| Operation | Via web interface, Modbus, OPC-UA |
| Maximum storable data records | 500 |
O/E converter Interfaces
| Interface | Fiber optic interface |
| Number of Ports | 3 |
| Connection Method | B-FOC (ST®) |
Dimensions
| Width | 77.6 mm |
| Height | 185 mm |
| Depth | 181.5 mm |
Material specifications
| Color | Silver |
| Color | black (RAL 9005) |
| Housing Material | Stainless steel 1.4016 |
Mechanical data
| Open side panel | No |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Standards and Regulations
| Standards/specifications | EN 61326-1 |
| Note | 2013 |
Mounting
| Mounting Type | DIN rail: 35 mm |
