Name: 2773652
Brand: Phoenix Contact
SKU: PHX2773652

Official Distributor

By Phoenix Contact

SKU

MPN

RL PN 24-2 DIO 16/8 2TX

Weight

1.29 kg

Series RL-PN

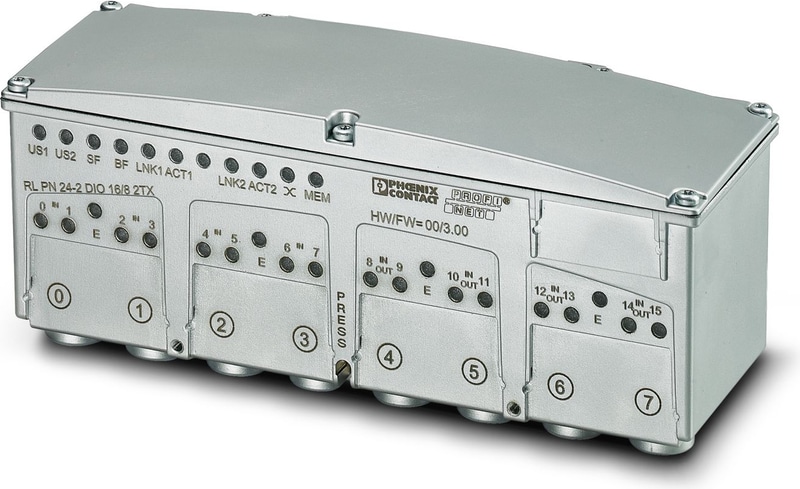

RL PN 24-2 DIO 16/8 2TX - Distributed I/O device

Digital I/O device for PROFINET; 100Base-TX, fast startup, SNMPv2, TFTP, LLDP, PDev, eight inputs (24 V DC), eight configurable inputs or outputs (24 V DC, max. 0.5 A), VARIOSUB push/pull connection method, rugged metal housing, degree of protection IP67

Rugged metal housing
Comprehensive diagnostic functions
Push/pull connector for PROFINET, either with fiber optic or twisted pair
Push/pull connector for supply voltage
M12 connector for I/O devices

Dimensions

Width	182.5 mm
Height	71.5 mm
Depth	79.8 mm
Note on dimensions	without male connectors, with mounting panel

PROFINET

No. of channels	2
Connection Method	VARIOSUB push-pull connectors
Designation connection point	Copper cable
Number of Positions	4
Transmission Speed	10/100 Mbps (auto negotiation)
Transmission physics	Twisted pair connection
Device function	PROFINET device
Specification	PROFINET-IO RT, Spec. 2.1
Conformance class	B

Digital:

Input name	Digital inputs
Description of the input	IEC 61131-2 type 1
Number of Inputs	16 (8 fixed and 8 freely selectable)
Connection Method	M12 connector
Connection technology	2-, 3-, 4-conductor
Nominal input voltage U_IN	24 V DC
Protective circuit	Electronic short-circuit/overload protection for each group; Reverse polarity protection
Output name	Digital outputs
Connection Method	M12 connector
Connection technology	2-, 3-conductor
Number of Outputs	8 (Can also be used as an input)
Protective circuit	Electronic short-circuit/overload protection for each channel
Output Voltage	24 V
Maximum Output Current per channel	500 mA
Nominal Output Voltage	24 V
Output voltage when switched off	max. 0.5 V
Output current when switched off	0 A
Nominal load, inductive	12 VA (1.2 H, 48 Ω)
Nominal load, lamp	12 W
Nominal load, ohmic	12 W
Maximum operating frequency with ohmic nominal load	300 Hz
Behavior with overload	Auto restart
Behavior with inductive overload	Output can be destroyed
Overcurrent shut-down	min. 0.7 A

Product properties

Product family	Ruggedline
Type	Block design
No. of channels	16

Supply: Module electronics

Connection Method	VARIOSUB push-pull connectors
Designation	US1
Supply Voltage	24 V DC
Supply Voltage Range	18.5 V DC ... 30 V DC (including ripple)
Ripple	Max 3.6 VSS within the permissible voltage range

Electrical isolation/isolation of the voltage ranges

Test voltage: Between bus logic and outputs

500 V AC, 50 Hz, 1 min.

Connection data

Connection Method

Push-Pull

Ambient conditions

Ambient Temperature (Operation)	-20 °C ... 55 °C
Degree of Protection	IP65/IP67
Note	Seal unused slots/connections to ensure the degree of protection.
Air pressure (operation)	860 hPa ... 1080 hPa (up to 1500 m above sea level)
Air pressure (storage/transport)	660 hPa ... 1080 hPa (up to 3500 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	100 %
Permissible humidity (storage/transport)	95 % (non-condensing)

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting

2731128
IBS RL AP - Mounting panel for Ruggedline devices
1405141
VS-PPC-C1-RJ45-MNNA-PG9-4Q5-B - RJ45 connector, degree of protection: IP65/IP67, number of positions: 4, CAT5 (IEC 11801:2002), material: Metal, connection method: IDC fast connection, connection cross section: AWG 26- 22, cable outlet: straight, color: silver, PROFINET
1608074
VS-PPC-C2-MSTB-MNNA-P13-A5-SP - Power connector, degree of protection: IP65, number of positions: 5, material: Zinc die-cast, connection method: Spring-cage connection, connection cross section: AWG 18- 13, cable outlet: straight, color: silver
1608142
Protective cover - VS-PPC-C1-PC67-MNNA
1680539
Screw plug - PROT-M12
2891259
FL MEM PLUG - Exchangeable configuration memory of the device settings for simple device exchange and set-up
2731775
IBS PWR/5HD/F - Power supply cable, gray, welding-splash-resistant in standard applications, 5 x 1.5 mm2, highly flexible, sold by the meter
2820000
IBS PWR/5 - Power supply cable, gray, welding-splash-resistant in standard applications, 5 x 1.5 mm2, sold by the meter
1683455
Y distributor - SAC-3P-M12Y/2XM12FS PE
1641769
SACC-M12MS-4QO-0,75 - Connector, Universal, 4-position, Plug straight M12, coding: A, Insulation displacement connection, knurl material: Plastic, external cable diameter 4 mm ... 8 mm
2732729
IBS RL MARKER-SET - Marking labels, set with 50 small and 50 large labels
2734727
IBS RL MARKER-G-SET - 100 large metal marking labels
2734730
IBS RL MARKER-K-SET - 100 small metal marking labels
1404045
VS-PPC-C2-PC67-MNNA, Dummy plug, degree of protection: IP65, material: Zinc die-cast, color: silver
