2203543
Official DistributorSKU
PHX2203543
MPN
D L 2,8 64X 8
Weight
0.056 kg

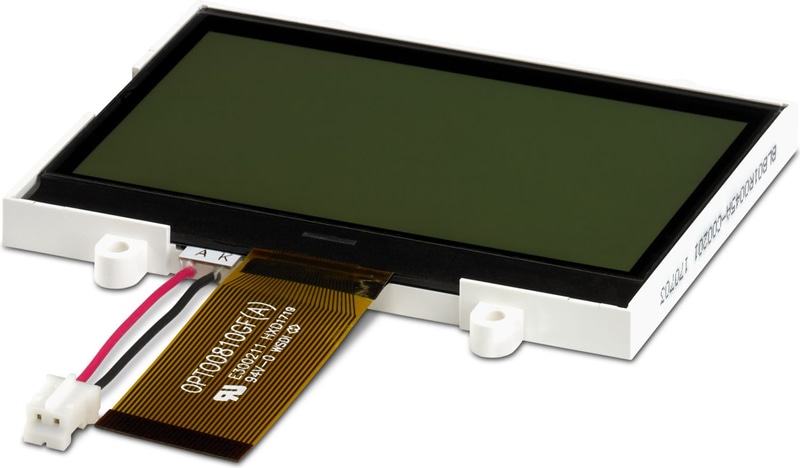

D L 2,8 64X 8 - Display
Graphic LCD module, 2.8", 128 x 64 pixels, FSTN transflective/positive 6:00, LED backlight, interface: 8 bit, operating temperature: -20 °C ... 70 °C
- Graphic LCD module
- Easy and time-saving integration into HCS series electronics housings
- Long-term availability
- Ideal protective shield and gasket material
- Backlighting can be switched on and off
- Common interface for your electronics
Technical Specifications
Notes
| General | The background color may vary slightly depending on the ambient temperature. This procedure can be reversed. |
| Notes on safety | NOTE: Electrostatic discharge!The device contains components that can be damaged or destroyed by electrostatic discharge. When handling the device, observe the necessary safety precautions against electrostatic discharge (ESD) according to EN 61340-5-1 and IEC 61340-5-1. |
Display
| Display type | Graphic LCD module |
| Display type | LCD with backlighting |
| Display type | transmissive |
| Panel technology | FSTN |
| Diagonals (cm) | 7.11 cm |
| Diagonals (inch) | 2.8 in. |
| Screen resolution | 128 x 64 Pixel(s) |
| Display lighting type | LED, white |
| Contrast ratio | 4 |
| Viewing direction | 6:00 |
| Controller | NT7538 |
| Representation | positive |
Interfaces
| Interface | 8-bit parallel |
Dimensions
| Dimensions | 70 mm x 49 mm x 5 mm (Mounting panel dimensions) |
| Dimensions | 63 mm x 35 mm (Viewing area) |
| Dimensions | 60 mm x 30 mm (Active range) |
Material specifications
| Surface characteristics | untreated |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 55 - 10 Hz |
| Sweep speed | 1 octave/min |
| Test duration per axis | 15 min. |
| Test directions | X-, Y- and Z-axis |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Relative humidity (storage/transport) | 93 % |
Mounting
| Mounting Type | Screw mounting |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
Handheld housing, C-Medium, light gray, consisting of two half shells, two front plates, screws. Front 1.1 mm recessed, with window and keypad slot, battery compartment cover and battery contacts for 3 AA batteries
HCS-C MAXI 1W C 1 1 7035 - Handheld housing, C-Maxi, light gray, consisting of two half shells, two front plates with screws, front 1.1 mm recessed, with window and keypad slot
HCS-T MEDIUM 1W C 1 1 7035 - Handheld housing, T-Medium, light gray, consisting of two half shells, two front plates with screws, front 1.1 mm recessed, with window and keypad slot
