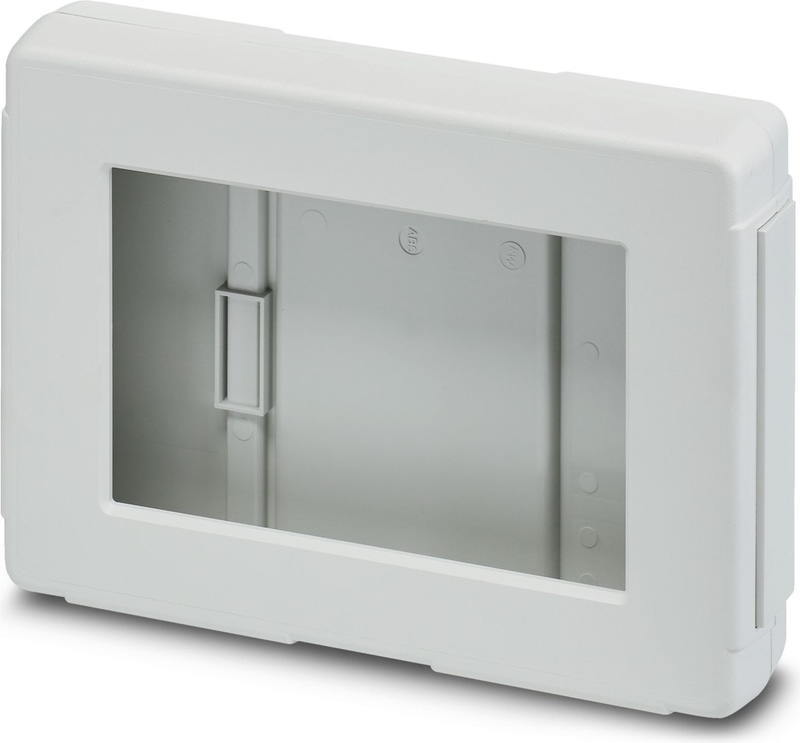

DCS 7 M C O C 1 7035 - Electronics housing
Display housing, 7", light gray, central window, front level, consisting of two half shells, four front plates with screws
- Display housing for portable and stationary operating panels
- Integration of TFT display and membrane keypads
- Up to IP54 degree of protection
- Shock-resistant ABS plastic
- Flammability rating V0 in accordance with UL 94
Technical Specifications
Product properties
| Housing type | Display carrier |
| Housing series | DCS |
| Product family | DCS 7.. |
| Ventilation openings present | no |
| Battery compartment | no |
Display
| Diagonal | 7 in. / 18 cm (Window for display) |
Dimensions
| Width | 226 mm |
| Height | 158 mm |
| Depth | 40 mm |
| Dimensions | 154.4 mm x 93.4 mm (Window for display, center position) |
| Dimensions | 21.8 mm x 62.8 mm (Front with faceplate, position above, quantity 2) |
| Dimensions | 20 mm x 104 mm (Side with faceplate, position left and right, quantity 1) |
| Front with faceplate | top, 2 x (62.5 mm x 21.8 mm) |
| Front with faceplate | left, 1 x (104 mm x 20 mm) |
| Front with faceplate | right, 1 x (104 mm x 20 mm) |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Material (Housing) | ABS |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 400 ≤ CTI < 600 |
| Insulating material | II |
| Housing Material | ABS |
| Surface characteristics | untreated |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 80 °C |
| Test duration | 1 h |
| Force | 20 |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP54 |
PCB data
| Number of PCB holders | 2 |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Wall fastening | no |
Accessories
