Phoenix Contact 1864286
AllConnectorsTerminal blocksPCB terminal blocks and connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
SPTAF 1/ 2-3,5-LL
Weight
0.001 kg
Series SPTAF

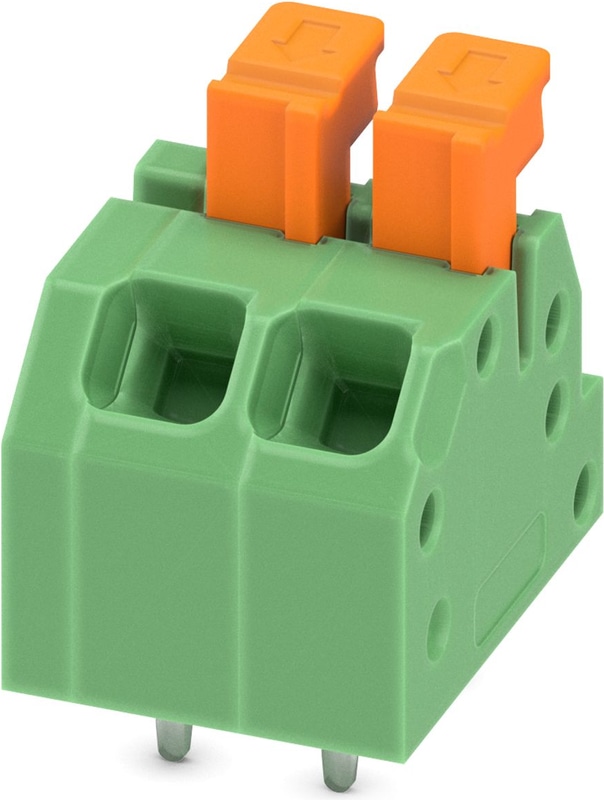

SPTAF 1/ 2-3,5-LL - PCB terminal block

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SPTAF 1/..-LL, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Finger-operated and fixable release button for very convenient operation
  • Small component size for applications where space is at a premium
  • Quick and convenient testing using integrated test option
Technical Specifications

Product properties

Product familySPTAF 1/..-LL
Product lineCOMBICON Terminals S
Number of Positions2
Pitch3.5 mm
Number of Connections2
Number of rows1
Number of potentials2
Pin layoutLinear pinning
Solder pins per potential2

Electrical properties

Nominal current IN13.5 A
Nominal voltage UN160 V
Degree of pollution3
Rated voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV

Connection technology

Nominal cross section1 mm²

Conductor connection

Connection MethodPush-in spring connection
Conductor cross section rigid0.2 mm² ... 0.75 mm² (When connecting and positioning a rigid 0.75 mm² conductor, the mechanical transverse forces that can act on the terminal block must be absorbed by lateral support.)
Conductor cross section rigid0.34 mm² ... 0.75 mm² (Push-in connection)
Conductor cross section flexible0.2 mm² ... 1 mm²
Conductor cross section AWG24 ... 18
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm² (Conductor connection with open terminal point)
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 0.5 mm² (Push-in connection)
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.5 mm² (Conductor connection with open terminal point)
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 0.5 mm² (Push-in connection)
Stripping length8 mm

Mounting

Mounting TypeWave soldering
Pin layoutLinear pinning

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (2 - 4 µm Sn)
Metal surface soldering area (top layer)Tin (2 - 4 µm Sn)

Material data - housing

Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Material data – actuating element

Color (Actuating element)orange (2003)
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112275
Flammability rating according to UL 94V0

Notes

Note on applicationMaximum permissible outer diameter of the wire insulation ≤ 3 mm

Dimensions

Pitch3.5 mm
Width [w]8.5 mm
Height [h]13.5 mm
Length [l]11 mm
Installed height10.9 mm
Solder pin length [P]2.6 mm
Pin dimensions0.75 x 0.3 mm

PCB design

Pin spacing5 mm
Hole diameter1.1 mm

Test for conductor damage and slackening

SpecificationIEC 60999-1:1999-11
ResultTest passed

Repeated connection and disconnection

SpecificationIEC 60999-1:1999-11
ResultTest passed

Pull-out test

SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.25 mm² / flexible / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value1.5 mm² / solid / > 40 N
Conductor cross section/conductor type/tractive force setpoint/actual value1.5 mm² / flexible / > 40 N

Temperature-rise test

SpecificationIEC 60947-7-4:2013-08
Requirement temperature-rise testThe sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.

Short-time withstand current

SpecificationIEC 60947-7-4:2013-08

Insulation resistance

SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ

Air clearances and creepage distances |

SpecificationIEC 60947-1:2007-06 + A1:2010-12
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)0.8 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h

Glow-wire test

SpecificationIEC 60695-2-10:2013-04
Temperature850 °C
Time of exposure5 s

Aging

SpecificationIEC 60947-7-4:2013-08

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C

Packaging specifications

Type of packagingpacked in cardboard
Outer packaging typeCarton
Accessories
  • Phoenix Contact1204504
    1204504
    Screwdriver - SZF 0-0,4X2,5
  • Phoenix Contact1212034
    1212034
    CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
