1622460
Official DistributorSKU
PHX1622460
MPN
EV-CC-AC1-M3-CC-SER-PCB
Weight
0.21 kg
Series EV-CC-AC1

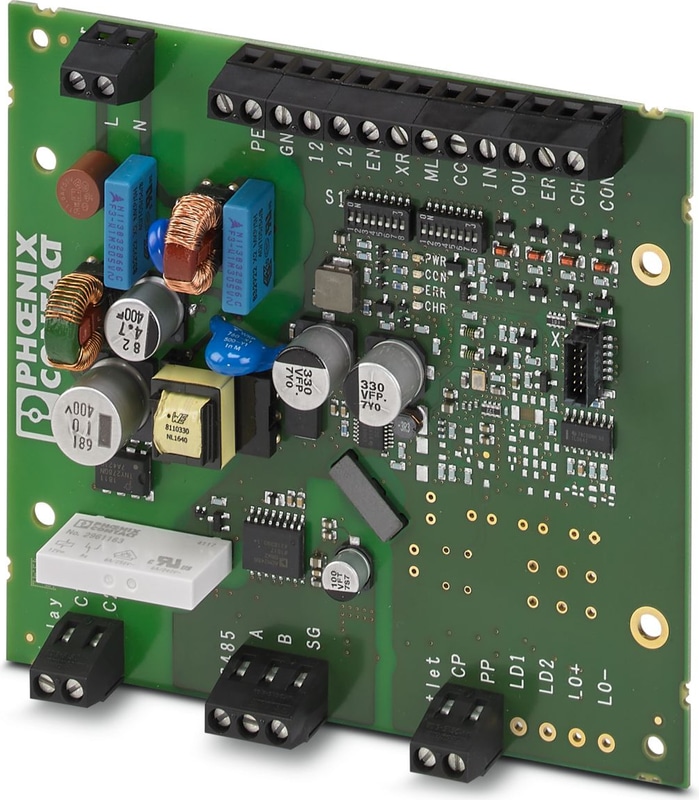

EV-CC-AC1-M3-CC-SER-PCB - AC charging controller
The EV-CC-AC1-M3-CC-SER-PCB charging controller as a PCB for charging electric vehicles on a 3-phase AC power grid according to IEC 61851-1, Mode 3. Optimized for charging stations with permanently mounted Vehicle Connector. All charging functions and comprehensive configuration settings are already integrated.
Technical Specifications
Product properties
| Product family | CHARX control basic |
| Application | AC charging controller for private and commercial applications (EU/CN) |
| Operating mode | Stand-Alone |
| Operating mode | Client |
| Charging mode | Mode 3, Case C |
Charging controllers
| Number of charging points | 1 |
Electrical properties
| Type of charging current | AC |
| Current consumption | < 1 W |
Supply
| Supply Voltage | 230 V |
| Supply Voltage Range | 100 V AC ... 240 V AC (nominal voltage range) |
| Max. current consumption | 40 mA |
| Nominal Power Consumption | < 1 W (No-load) |
| Frequency Range | 50 Hz ... 60 Hz |
Digital
| Number of digital inputs | 5 |
| Frequency Range | 50 Hz ... 60 Hz |
| Nominal Power Consumption | < 0.5 W (No-load) |
| Nominal current IN | ≤ 1 mA |
| Nominal input voltage UN | 12 V |
| Input voltage range U1 | 0 V ... 3 V (Off) |
| Input voltage range U2 | 9 V ... 15 V (On) |
| Output name | 4 digital outputs |
| Connection technology | Screw connection |
| Maximum output voltage | 30 V |
| Maximum output current | 0.5 A (Total current for all outputs; internally supplied) |
| Maximum output current | 0.6 A (Per output; externally supplied) |
Switching
| Output name | Relay output C1.2 |
| Minimum switching capacity | 1500 VA |
| Maximum Switching Voltage | 250 V AC (External supply) |
| Max. switching current | 6 A |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Interfaces
| Interface | RS-485 |
RS-485
| Interface | RS-485 2-wire |
| Bus system | RS-485 |
| Connection Method | Screw connection |
| Number of interfaces | 1 |
| Transmission Speed | 9.6 kbps (Standard) |
| Transmission speed range | 9.6 kbps ... 19.2 kbps (adjustable) |
| Data flow control/protocols | Modbus/RTU (slave) |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -35 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 30 % ... 95 % |
Conformity/Approvals
| Conformance | CE-compliant |
Standards
| Standards/regulations | IEC 61851-1 |
Mounting
| Mounting Type | PCB mounting |
| Mounting Position | any |
Accessories
