Name: 1619297
Brand: Phoenix Contact
SKU: PHX1619297
Price: 666.4200 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

K-17-M23 M9/010-E01/M23 F8

Weight

1.47 kg

Series K

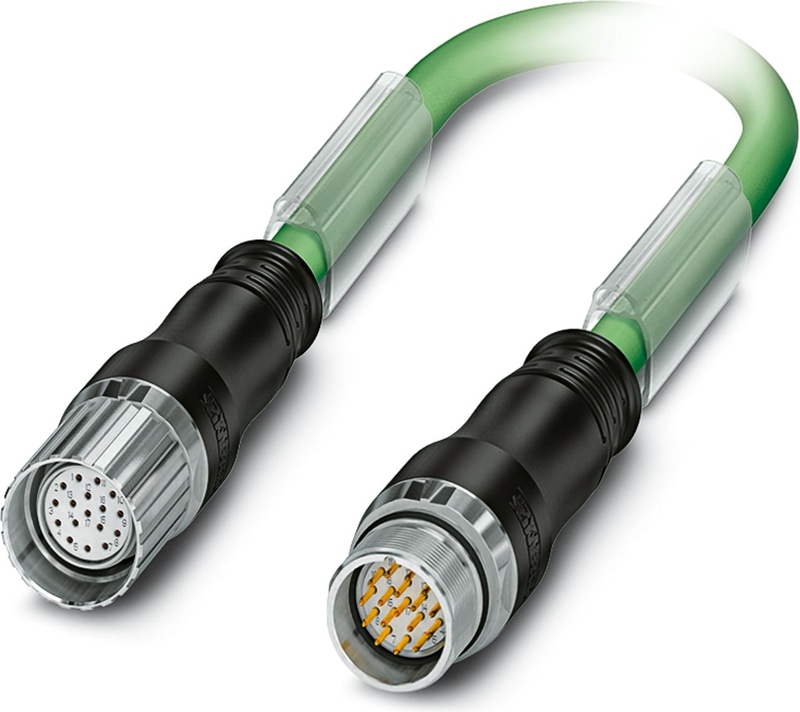

K-17-M23 M9/010-E01/M23 F8 - Connector in molded plastic on both sides

Connector in molded plastic on both sides, Straight, plastic molded, Straight, plastic molded, cable length: 10 m, shielded: yes, color of outer sheath: green

Our standard: robust halogen-free PUR cable
Simple and safe: 100% electrically tested and assembled ready for use
Designs with preassembled cables on one or both sides
High flexibility: customer-specific assemblies and cable lengths can be supplied

Connector specifications

Type	Straight, plastic molded

Cable specifications

Cable Type	SSLC11Y
Shielded	yes
Cable structure	3 x 2 x 0.14 mm² + 2 x 0.5 mm² + 4 x 0.14 mm² + 4 x 0.22 mm²
Cable Structure (AWG)	26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c
External Cable Diameter	9.40 mm
Outer sheath, material	TPU
Material wire insulation	TPU
External sheath, color	green
Nominal voltage, cable	30 V
Test voltage	0.5 kV
Rated current	9 A
Smallest bending radius, fixed installation	38 mm
Smallest bending radius, movable installation	94 mm
Ambient temperature (operation) for fixed installation	-30 °C ... 80 °C
Ambient temperature (operation) for flexible installation	-30 °C ... 60 °C

Connector specifications (second page)

Type	Straight, plastic molded

Electrical properties

Nominal current I_N

9 A

Cable/line

Cable Length

10 m
