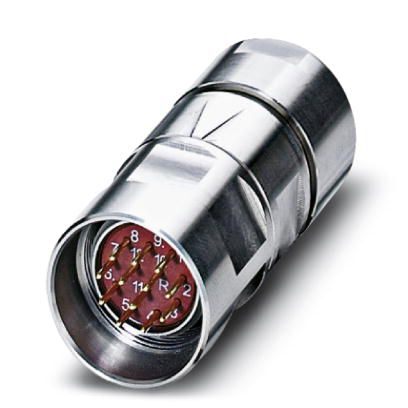

The figure shows the 12-pos. product version
1614088
Official DistributorSKU
PHX1614088
Cable connector - RF-16P1N8A8V03
M23 stainless steel signal cable connector 16-pos. for pin assembly, straight, N-encoding, standard contact chamber numbering, fixed gasket for cable diameter of 9 - 13.2 mm
Technical Specifications
General
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Type of locking | Screw locking |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Number of Positions | 16 |
| Contact diameter of power contacts | 1 mm |
| Rated current for power contacts | 8 A |
| Conductor Entry | 9 mm ... 13.2 mm |
| Pg housing screw connection | none |
Ambient conditions
| Ambient Temperature | -20 °C ... 125 °C |
| Degree of Protection | IP67 |
Material
| Housing Material | High-grade steel 1.4305 |
Specifications according to DIN EN 61984:2001
| Installation height max. | 2000 m |
| Nominal / operating voltage of power contacts | 48 V AC |
| Nominal / operating voltage of power contacts | 74 V DC |
| Rated surge voltage of power contacts | 1.5 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 1614088?
Proax is an authorized distributor of Phoenix Contact 1614088 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
