Name: 1456022
Brand: Phoenix Contact
SKU: PHX1456022
Price: 39.6700 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-DSI-M 8MS-6CON-L180 SH

Weight

0.006 kg

Series SACC-DSI-M

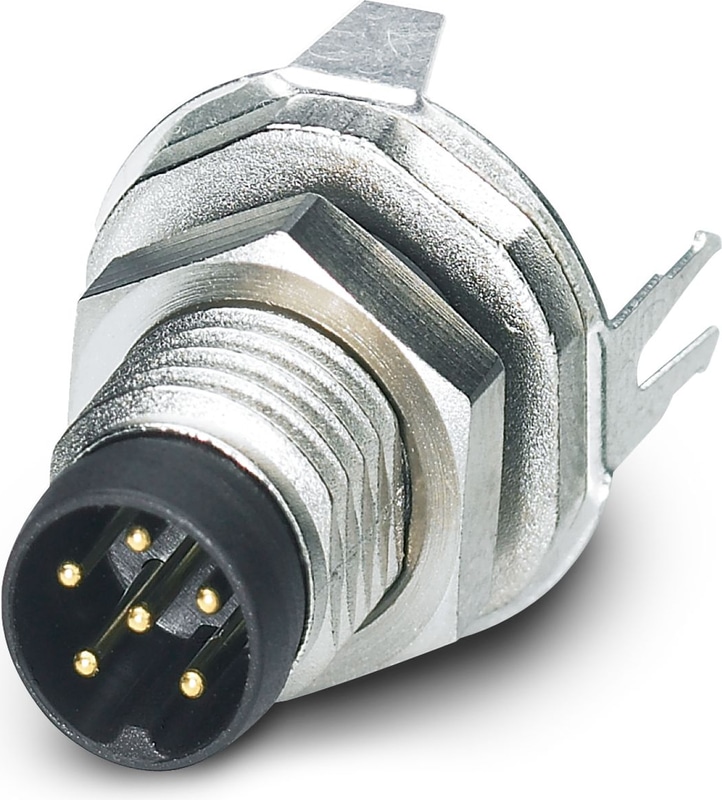

SACC-DSI-M 8MS-6CON-L180 SH - Device connector rear mounting

Device connector rear mounting, Universal, 6-position, Pin, straight, M8, Rear mounting, M8 x 1, Wave soldering

Easy PCB assembly: one-piece connectors for wave soldering
Standard pin assignments and codings for signal transmission with a uniform design-in design
For high transmission reliability: optional shield connection to the housing and latching on the PCB

Mounting

Mounting Type	Rear mounting M8 x 1 With flat nut
Assembly instructions	With flat nut

Product properties

Sensor Type	Universal
Number of Positions	6
Shielded	yes
Coding	A
Thread type	M8

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	NBR
Contact Material	Cu alloy
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Zinc die-cast, nickel-plated

Electrical properties

Rated surge voltage	0.8 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V AC
Nominal voltage U_N	30 V DC
Nominal current I_N	2 A

Conductor connection

Connection Method	Wave soldering
Contact connection type	Pin
Tightening torque	1 Nm ... 1.5 Nm (Installation-side)

Connection 1

Head design	Pin
Head cable outlet	straight
Head thread type	M8

Cable/line

Signal type/category	Universal
Ambient Temperature (Operation)	-40 °C ... 85 °C

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP67
Ambient Temperature (Operation)	-40 °C ... 85 °C
Ambient Temperature (Operation)	-40 °C ... 85 °C

Standards and Regulations

Standard designation	M8 connector
Standards/specifications	IEC 61076-2-104
