Name: 1694347
Brand: Phoenix Contact
SKU: PHX1694347
Price: 26.5800 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-DSI-M 8MS-4CON-L180

Weight

0.006 kg

This product is Not Cancellable/Not Returnable

Series SACC-DSI-M

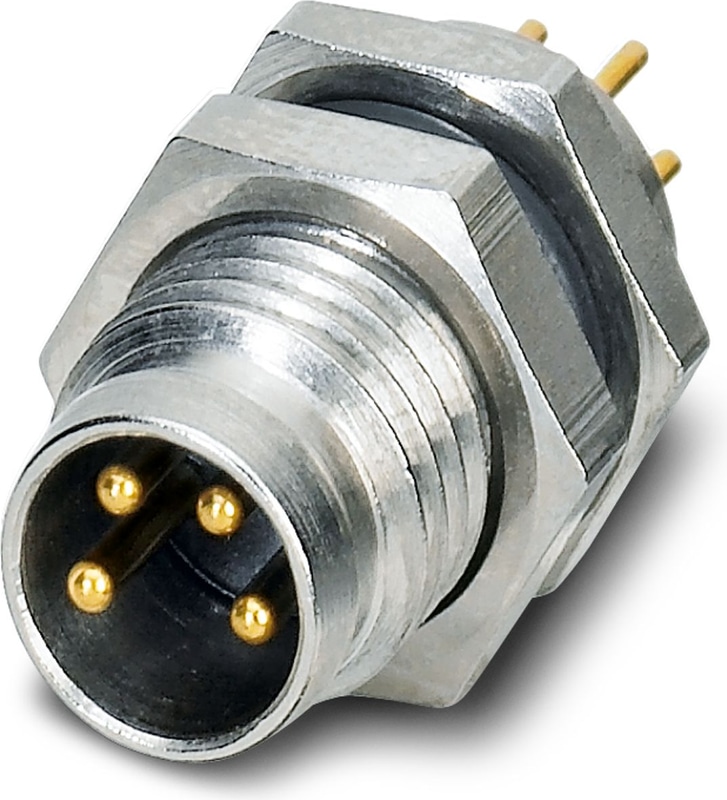

SACC-DSI-M 8MS-4CON-L180 - Device connector rear mounting

Device connector rear mounting, Universal, 4-position, Pin, straight, M8, Rear mounting, M8 x 1, Wave soldering

Easy PCB assembly: one-piece connectors for wave soldering
Standard pin assignments and codings for signal transmission with a uniform design-in design
For high transmission reliability: optional shield connection to the housing and latching on the PCB

Mounting

Mounting Type	Rear mounting M8 x 1 With locking nut
Assembly instructions	With locking nut

Product properties

Sensor Type	Universal
Number of Positions	4
Shielded	no
Coding	A
Thread type	M8

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	NBR
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Electrical properties

Rated surge voltage	1.5 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	48 V AC
Nominal voltage U_N	60 V DC
Nominal current I_N	4 A

Conductor connection

Connection Method	Wave soldering
Contact connection type	Pin
Tightening torque	1 Nm ... 1.5 Nm (Installation-side)

Connection 1

Head design	Pin
Head cable outlet	straight
Head thread type	M8

Cable/line

Signal type/category

Universal

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP67
Ambient Temperature (Operation)	-40 °C ... 85 °C
Ambient Temperature (Operation)	-25 °C ... 85 °C

M8

Standard designation	M8 connector
Standards/specifications	IEC 61076-2-104
