1429091
Official DistributorSKU
PHX1429091
MPN
SACCBP-M12FS-6CON-M16/0,5-970
Weight
0.066 kg
Series SACCBP-M

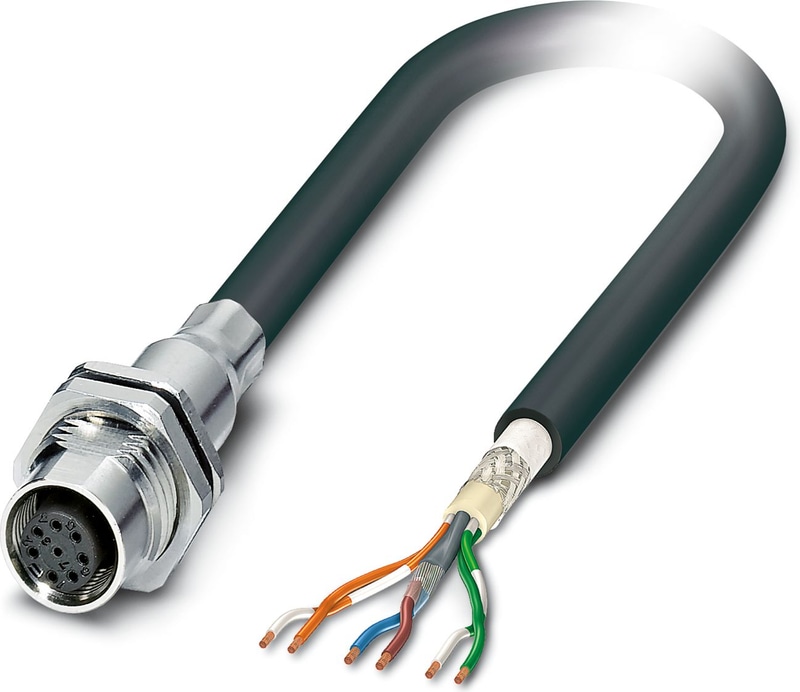

SACCBP-M12FS-6CON-M16/0,5-970 - Device connector rear mounting
Device connector rear mounting, 8-position, SANTOPRENE halogen-free, black RAL 9005, shielded, Socket, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239595
- Preassembled with cables in various standard lengths for immediate use
- Customer-specific assemblies and cable lengths can be supplied
- Sealed on the cable side for optimum tightness of seal
- Cable designs for all common networks and fieldbuses
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting Type | Rear mounting M16 x 1.5 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Number of Positions | 8 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
| Outer sheath, material | SANTOPRENE halogen-free |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 2 A |
Conductor connection
| Connection Method | Cable connection |
| Contact connection type | Socket |
| Conductor Cross Section | 0.25 mm² |
| Tightening torque | 2 Nm ... 3 Nm (Installation-side) |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 0.5 m |
VARAN [970]
| Cable weight | 81 kg/km |
| Number of Positions | 6 |
| Shielded | yes |
| Cable Type | VARAN [970] |
| Conductor structure | 1x2xAWG22/19 + 1x4xAWG24/19 |
| Conductor structure signal line | 19x 0.13 mm |
| AWG Signal Line | 24 |
| Conductor Cross Section | 4x 0.25 mm² (Signal line) |
| Conductor Cross Section | 2x 0.38 mm² (Power supply) |
| Wire diameter incl. insulation | 1.35 mm (Signal line) |
| Wire diameter incl. insulation | 1.5 mm (Power supply) |
| External Cable Diameter | 7.80 mm ±0.2 mm |
| Outer sheath, material | SANTOPRENE halogen-free |
| External sheath, color | black RAL 9005 |
| Conductor material | Bare Cu litz wires |
| Material, filler | Yarn |
| Material wire insulation | PP |
| Single wire, color | brown, blue, white/orange, white/green, green, orange |
| Type of pair shielding | Tinned copper braided shield, 95 % covering |
| Overall twist | 1 star quad and 2 wires with 2 fillers |
| Max. conductor resistance | 77 Ω/m (Data cable) |
| Insulation resistance | 5 GΩ*km (Data cable) |
| Wave impedance | 100 Ω ±15 % |
| Working capacitance | 50 nF (Data cable) |
| Nominal voltage, cable | 125 V (Data cable) |
| Nominal voltage, cable | 48 V (Power supply) |
| Test voltage | 2000 V (Power supply) |
| Test voltage | max. 700 V AC (Data cable) |
| Smallest bending radius, fixed installation | ≥ 93 mm |
| Smallest bending radius, movable installation | ≥ 93 mm |
| Max. bending cycles | 3000000 |
| Halogen-free | in accordance with DIN EN 50267-2-1 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable) |
| Ambient temperature (installation) | 0 °C ... 50 °C |
Ambient conditions
| Degree of Protection | IP67 (When plugged in) |
| Degree of Protection | IP65 (When plugged in) |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (cable, fixed installation) |
