1401425
Official DistributorSKU
PHX1401425
MPN
SACCBP-M12FSB-2CON-M16/2,0-915
Weight
0.172 kg
Series SACCBP-M

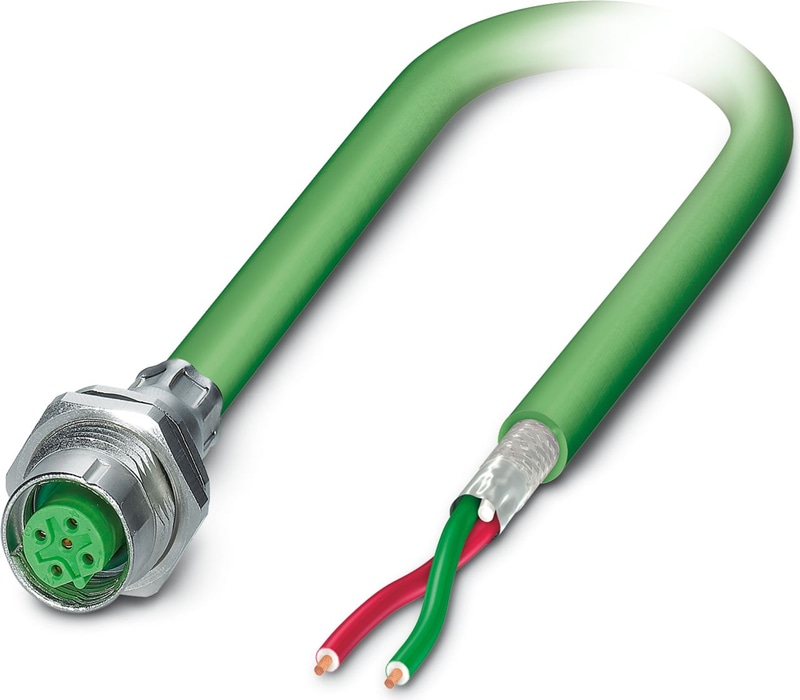

SACCBP-M12FSB-2CON-M16/2,0-915 - Device connector rear mounting
Device connector rear mounting, 5-position, PUR, green RAL 6018, coding: B, Rear wall/screw mounting, M16 x 1.5, Bus line, 0.25 mm2, PROFIBUS, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238666
Technical Specifications
Notes
| Order information: | Lock nut is included in the scope of delivery |
Safety note
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Mounting
| Mounting Type | Rear wall/screw mounting M16 x 1.5 |
Product properties
| Number of Positions | 5 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | B |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Rated surge voltage | 1.5 kV AC |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 10 GΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
Conductor connection
| Connection Method | Bus line |
| Contact connection type | Socket |
| Conductor Cross Section | 0.25 mm² |
Mechanical data
| Max. bending cycles | 3000000 |
Cable/line
| Cable Length | 2 |
PROFIBUS [915]
| Cable weight | 74 kg/km |
| Number of Positions | 2 |
| Shielded | yes |
| Cable Type | PROFIBUS [915] |
| Conductor structure | 1x2xAWG24/19 |
| Conductor structure signal line | 19x 0.14 mm |
| AWG Signal Line | 24 |
| Conductor Cross Section | 2x 0.25 mm² |
| Wire diameter incl. insulation | 2.56 mm |
| External Cable Diameter | 8.00 mm ±0.4 mm |
| Outer sheath, material | PUR |
| External sheath, color | blue |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | Foamed PE |
| Single wire, color | red, green |
| Thickness, outer sheath | approx. 0.80 mm |
| Overall twist | 2 wires, twisted |
| Optical shield covering | 70 % |
| Insulation resistance | ≥ 16 GΩ*km |
| Working capacitance | 28 nF (at 1 kHz) |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 3600 V DC |
| Minimum bending radius, flexible installation | 5 x D |
| Smallest bending radius, movable installation | 40 mm |
| Max. bending cycles | 3000000 |
| Tensile strength | ≤ 100 N |
| Flame resistance | according to IEC 60332-1 |
| Resistance to Oil | Resistant to mineral oils and grease |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP67 (When plugged in) |
| Degree of Protection | IP65 (When plugged in) |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 ... -85 (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
Standards and Regulations
| Standards/specifications | according to IEC 61076-2-101 |
