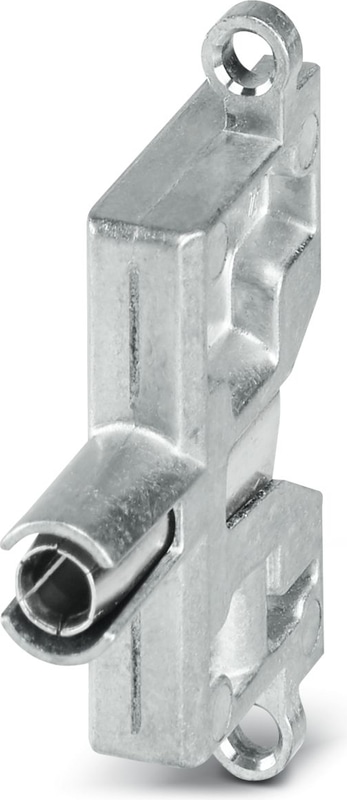

Name: 1424438
Brand: Phoenix Contact
SKU: PHX1424438
Price: 12.8200 CAD
Availability: BackOrder

General

Series

Application

Number of Positions

Contact material type

Connection technology

Conductor Cross Section

Connection cross section AWG

Tightening torque

Width

Height

Length

Drill hole distance, horizontal

Contact diameter

Insertion/withdrawal cycles

Flammability rating according to UL 94

Contact carrier material

Ambient Temperature (Operation)

Request replacement

Estimated Lead Time

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>SF-PH 1-80 - Screwdriver</h3><p>Screwdriver, PH crosshead (lasered), uninsulated, size: PH 1 x 80, 2-component grip, with non-slip grip</p><ul><li>Screwdrivers for Phillips screws with Pozidriv and Phillips Recess screw head</li></ul>

1212559

Screwdriver, PH crosshead (lasered), uninsulated, size: PH 1 x 80, 2-component grip, with non-slip grip

<h3>SF-SL 0,6X3,5-100 - Screwdriver</h3><p>Screwdriver, bladed (lasered), size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip</p><ul><li>The tools feature ergonomic two-component safety handles</li><li>Large contact surface of blades inside screw head</li></ul>

1212549

<h3>HC-EVO-M1-BWS-PLRBK - Housing</h3><p>Panel mounting base M1, with single locking latch, material: PA, height: 24 mm, cable gland: none, protective cover: no, Standard, for modular contact inserts</p>

1424437

HC-EVO-M1-BWS-PLRBK - Panel mounting base M1, with single locking latch, material: PA, height: 24 mm, cable gland: none, protective cover: no, Standard, for modular contact inserts

<h3>HC-1/2M-UT-F-6-PE - Contact insert module</h3><p>Contact insert module, Socket, Screw connection, 0.5 mm2 ... 6 mm2, application: PE transmission, for housing size HC-EVO-M1</p>

1424438

HC-1/2M-UT-F-6-PE - Contact insert module, Socket, Screw connection, 0.5 mm2 ... 6 mm2, application: PE transmission, for housing size HC-EVO-M1

Phoenix Contact

Standard shipping for orders under $200 (Canada)

1424438

HC-1/2M-UT-F-6-PE - Contact insert module

Notes

Product properties

Connection technology

Conductor connection

Dimensions

Mechanical characteristics

Mechanical data

Material specifications

Ambient conditions

Why Proax for Phoenix Contact 1424438?

General	For HEAVYCON housing type HC-EVO-M1
General	Connectors may be operated only when there is no load/voltage.

Series	HC-EVO-M1
Application	PE transmission
Number of Positions	1
Contact material type	turned

Conductor Cross Section	0.5 mm² ... 6 mm²
Connection cross section AWG	20 ... 10
Tightening torque	0.8 Nm ... 1.2 Nm (PE connection)
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)

Width	30.6 mm
Height	43.7 mm
Length	7.7 mm
Drill hole distance, horizontal	30.6 mm

Flammability rating according to UL 94	V0
Contact carrier material	Die-cast zinc alloy
