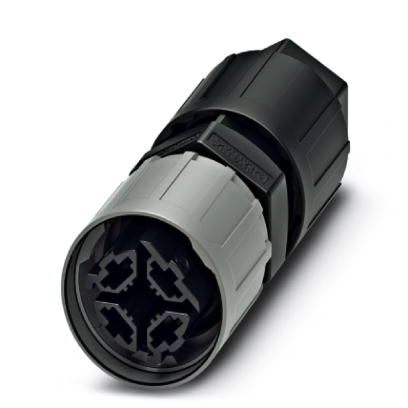

QPD P 3PE1,5 4-9 BK - Connector

Connector, product family: QPD, connection method: IDC connection, number of positions: 3+PE, 0.5 mm2 ... 1.5 mm2, 690 V, 17.5 A, PA, black, with QUICKON nut, coding: Coding profile, external cable diameter: 5 mm ... 7 mm and 7 mm ... 9.5 mm

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
Technical Specifications

General

TypeQPD 4x1,5
Colorblack
Locking TypeScrew locking
Connection technologyQUICKON connection
Connection MethodIDC connection
Number of Positions4
Connection profile3+PE
Tightening torque, union nut8 Nm
Number of Connections4
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.16

Cabel

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation materialPVC/PE/TPE/rubber
Wire diameter including insulation1.6 mm ... 3 mm
External Cable Diameter5 mm ... 9.5 mm
Stripping length of the sheath60 mm (Branch line)
Stripping length of the sheath60 mm (Master cable)
Position marking1, 2, 3, PE

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (2 m / 24 h)
Degree of ProtectionIP69K
Ambient Temperature (Operation)-40 °C ... 100 °C
Ambient temperature (storage/transport)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C

Electrical characteristics

Nominal current IN17.5 A
Nominal voltage UN690 V AC
Nominal voltage UN690 V DC
Rated current17.5 A
Rated voltage (III/3)690 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV

Mechanical characteristics

QUICKON connectabilitymax. 10
Insertion/withdrawal cyclesmax. 50
Category of shock impactIK07

Material data

Contact MaterialCu
Contact surface materialsilver-plated
Contact carrier materialPA
Insulating materialPA
Flammability rating according to UL 94V0
Overvoltage categoryIII
Degree of pollution3

Standards and Regulations

Category of shock impactIK07

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50 years
China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Accessories
  • Phoenix Contact1414724
    1414724
    Protective cap - QPD PSK 3/4X1,5
  • Phoenix Contact1414729
    1414729
    CP-QPD 3/4X1,5 - Coding profile red, for pushing into the QUICKON dome and connector, can be positioned in 90° steps.
  • Phoenix Contact1400255
    1400255
    Closing cap - SEALING PLUG 7X16 RD
