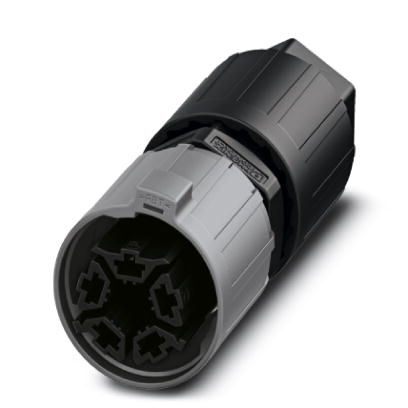

Phoenix Contact 1403782
AllConnectorsInstallation systems

1403782

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1403782
MPN
QPD P 4PE2,5 9-16 BK
Weight
0.073 kg
This product is Not Cancellable/Not Returnable
Series QPD-P

QPD P 4PE2,5 9-16 BK - Connector

Connector, product family: QPD, connection method: IDC connection, number of positions: 4+PE, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, with QUICKON nut, external cable diameter: 9 mm ... 16 mm

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
Technical Specifications

General

TypeQPD 5x2,5
Colorblack
Locking TypeScrew locking
Connection technologyQUICKON connection
Connection MethodIDC connection
Number of Positions5
Connection profile4+PE
Wrench size, union nut27 mm
Tightening torque, union nut10 Nm
Number of Connections10
Conductor cross section flexible min.1 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section solid min.1 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.16
Conductor cross section AWG max.14

Cabel

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation materialPVC/PE/TPE/rubber
Wire diameter including insulation2 mm ... 3.8 mm
External Cable Diameter9 mm ... 16 mm
Stripping length of the sheath60 mm (Branch line)
Stripping length of the sheath60 mm (Master cable)
Position marking1, 2, 3, N, PE

Ambient conditions

Degree of ProtectionIP66
Degree of ProtectionIP68 (2 m / 24 h)
Degree of ProtectionIP69K
Ambient Temperature (Operation)-40 °C ... 100 °C
Ambient temperature (storage/transport)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C

Electrical characteristics

Nominal current IN20 A
Nominal voltage UN690 V AC
Nominal voltage UN690 V DC
Rated current20 A
Rated voltage (III/3)690 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV

Mechanical characteristics

QUICKON connectabilitymax. 10
Insertion/withdrawal cyclesmax. 50
Category of shock impactIK07

Material data

Contact MaterialCu
Contact surface materialsilver-plated
Contact carrier materialPA
Insulating materialPA
Flammability rating according to UL 94V0
Overvoltage categoryIII
Degree of pollution3

Standards and Regulations

Category of shock impactIK07

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact1670646
    1670646
    Socket wrench - QSS 27
  • Phoenix Contact1404530
    1404530
    CP-QPD 5X2,5 - Coding profile, red, for insertion into the 5-pos. QUICKON dome and connector, can be positioned in 72° increments.
  • Phoenix Contact1404528
    1404528
    Protective cap - QPD QSK 5X2,5
  • Phoenix Contact1404529
    1404529
    Protective cap - QPD PSK 5X2,5
  • Phoenix Contact1400270
    1400270
    Closing cap - SEALING PLUG 14X22 RD
