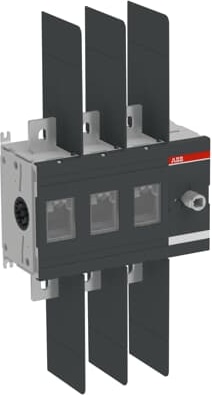

OT600U30
Official DistributorBy ABB
SKU
ABBOT600U30
MPN
1SCA022798R0650
Weight
6.3 kg
Handle and shaft must be ordered separatly.
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301119M0201 |
| Environmental Information | 1SCC301232D0201 |
| Environmental Product Declaration - EPD | 1SCC301284D0201 |
Dimensions
| Product Net Width | 266 mm |
| Product Net Height | 250 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 6.3 kg |
Technical
| Conventional Thermal Current (Ithe) | Fully Enclosed 600 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 10000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 800 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 560 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 30 (Right Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 56.5 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 600 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 150 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 208 V) 150 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 200 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 450 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 500 Hp |
| Tightening torque | acc. IEC 60947-1 56.5 N·m |
