OT600U03CP
Official DistributorBy ABB
SKU
ABBOT600U03CP
MPN
1SCA022785R5320
Weight
17.9 kg

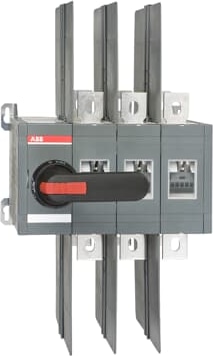

600A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. UL version
Technical Specifications
ABB EcoSolutions
| Environmental Information | 1SCC303050D0201 |
Dimensions
| Product Net Width | 311 mm |
| Product Net Width | 12.24 in |
| Product Net Height | 250 mm |
| Product Net Height | 9.84 in |
| Product Net Depth / Length | 280 mm |
| Product Net Depth / Length | 11.02 in |
| Product Net Weight | 17.9 kg |
| Product Net Weight | 39.46 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 5000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 800 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 800 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Standards | UL 98 / IEC60947-6-1 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
Technical UL/CSA
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 200 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 450 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 500 Hp |
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
