1401828
Official DistributorSKU
PHX1401828
MPN
BNB-ZB 6,2,LGS:FORTL.ZAHLEN
Weight
0 kg
Series BNB-ZB

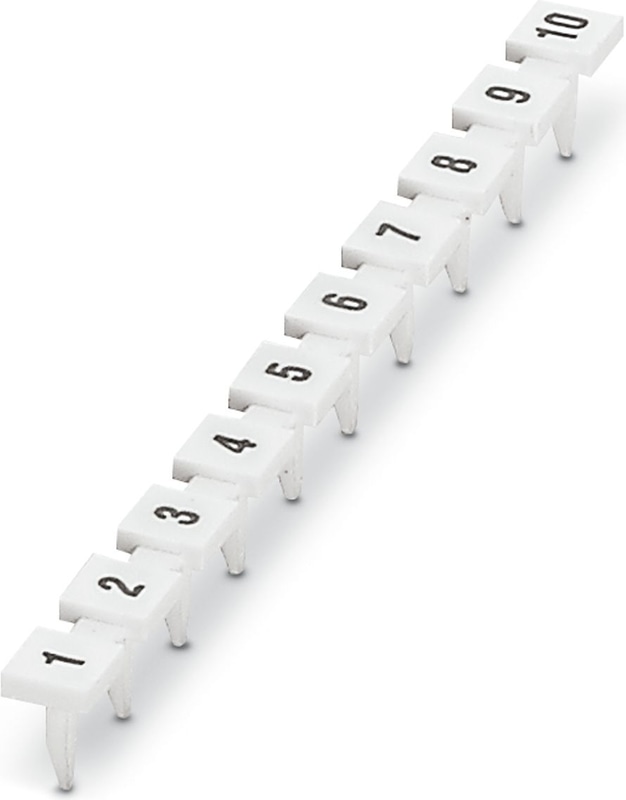

BNB-ZB 6,2,LGS:FORTL.ZAHLEN - Marker pin Zack strip
Marker pin Zack strip, Strip, white, labeled, printed horizontally: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 991 ... 1000, mounting type: plug in, for terminal block width: 6.2 mm, Number of individual labels: 10, text field height: 4 mm, text field width: 4 mm
Documents
Technical Specifications
Product properties
| Pitch | 6.2 mm |
| Type | high |
Marking
| Number of individual labels | 10 |
| Printing Direction | printed horizontally |
| Printing | consecutive numbers 1 ... 10, 11 ... 20, etc. up to 991 ... 1000 |
Mounting
| Mounting Type | plug in |
Material specifications
| Color | white (RAL 9010) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone and halogen |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 6.2 mm |
| Text field width | 4.00 mm |
| Text field height | 4.00 mm |
| Pitch | 6.2 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Notes
| Order information: | For labeling according to customer requirements, please select product 0824276 |
Why Proax for Phoenix Contact 1401828?
Proax is an authorized distributor of Phoenix Contact 1401828 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
