Name: 1401802
Brand: Phoenix Contact
SKU: PHX1401802

Official Distributor

By Phoenix Contact

SKU

MPN

BNB-ZB 5,2,LGS:FORTL.ZAHLEN

Weight

0 kg

Series BNB-ZB

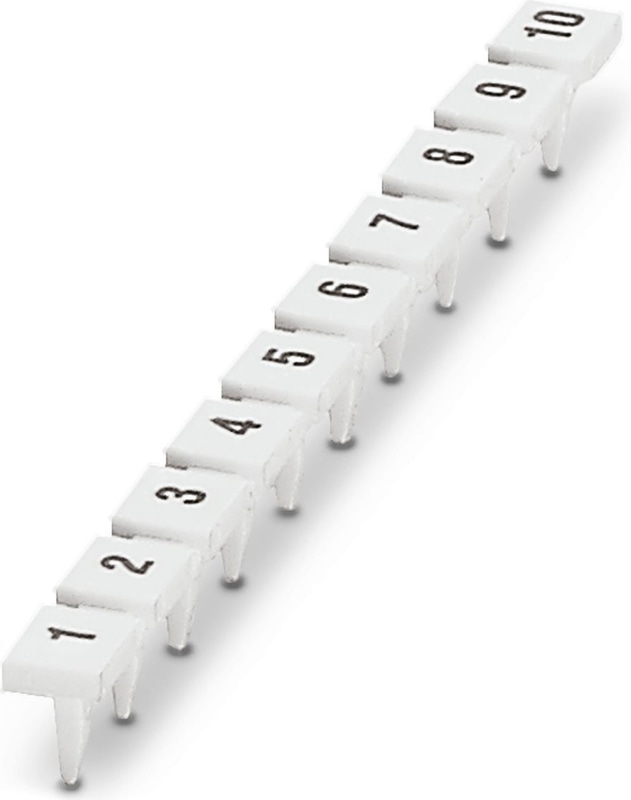

BNB-ZB 5,2,LGS:FORTL.ZAHLEN - Marker pin Zack strip

Product properties

Pitch	5.2 mm
Type	high

Marking

Number of individual labels	10
Printing Direction	printed horizontally
Printing	consecutive numbers 1 ... 10, 11 ... 20, etc. up to 991 ... 1000

Mounting

Mounting Type

plug in

Material specifications

Color	white
Material	PA
Flammability rating according to UL 94	V2
Components	free from silicone and halogen

UV resistance

Specification

ISO 4892-2:2013-03 (following)

Wipe resistance of inscriptions

Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification	DIN EN 62208 (VDE 0660-511):2012-06 (in parts)

Ambient conditions

Ambient Temperature (Operation)	-40 °C ... 100 °C
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 %

Dimensions

Width	5.2 mm
Pitch	5.2 mm

Standards and Regulations

Wipe resistance

DIN EN 61010-1 (VDE 0411-1)

Notes

Order information:

For labeling according to customer requirements, please select product 0824271

Proax is an authorized distributor of Phoenix Contact 1401802 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Pack Size

1401828
Marker pin Zack strip, Strip, white, labeled, printed horizontally: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 991 ... 1000, mounting type: plug in, for terminal block width: 6.2 mm, Number of individual labels: 10, text field height: 4 mm, text field width: 4 mm
