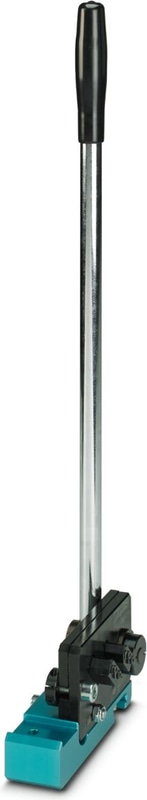

PPS COMPACT - Cutting tool
Profile cutter, for cutting standard DIN rails NS 35/7,5 and NS 35/15 to length
- Zero tension cutting to length without follow-up work
- Quick, reliable, and professional
- The optional measuring rail enables precision to the millimeter when cutting to length. A tape measure can be used as an alternative (Item No.: 1200304 / 1200298)
- Compact cutter for cutting DIN rails to length
Technical Specifications
Notes
| Note on application | NS 35/7,5: steel, copper, V2A, aluminum |
| Note on application | NS 35/15 steel, copper, aluminum |
Product properties
| Type | Millimeter |
Dimensions
| Width | 173 mm |
| Height | 610 mm |
| Length | 1099 mm |
| Length of the measuring bar | 1000 mm |
| Length of the hand lever | 580 mm |
| Max. material thickness | 1.5 mm |
Material specifications
| Color | black |
| Material | Steel |
| Coating | anodized |
Accessories
