Name: 1206243
Brand: Phoenix Contact
SKU: PHX1206243
Price: 8107.7600 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

PPS CLASSIC M

Weight

21.5 kg

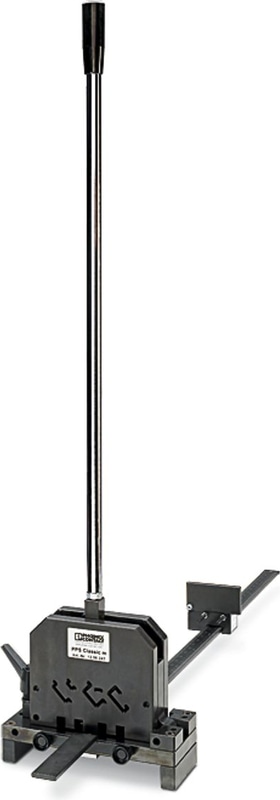

PPS CLASSIC M - Cutting tool

Profile cutter, for cutting to length and stamping holes in standard DIN rails, NS 32/NS 35/7,5/NS 35/15 and for cutting the NS 15 and NLS‑CU 3/10 neutral busbar to length, can accommodate 2 stamping bits, bits easily exchangeable, with metric measuring rail, delivered without stamping bits

Product properties

Type	Millimeter

Dimensions

Width	250 mm
Height	230 mm
Length	100 mm
Length of the measuring bar	1000 mm
Length of the hand lever	860 mm
Max. material thickness	1.5 mm

Material specifications

Color	black
Material	Steel

1203563
PPS-ST (3,5X12)L - Stamping bit, for elongated holes: 3.5 x 12 mm
1203534
PPS-ST (4,5X12)L - Stamping bit, for elongated holes: 4.5 x 12 mm
1202603
PPS-ST (5,5X12)L - Stamping bit, for elongated holes: 5.5 x 12 mm
1204876
PPS-ST (6,35X15)L - Multi-function tool (pressing/cutting/punching holes)
1202593
PPS-ST (6,5X15)L - Stamping bit, for elongated holes: 6.5 x 15 mm
1203550
PPS-ST (3,5X12)Q - Stamping bit, for elongated hole: 3.5 x 12 mm
1203547
PPS-ST (4,5X12)Q - Stamping bit, for elongated hole: 4.5 x 12 mm
1203411
PPS-ST (5,5X12)Q - Stamping bit, for elongated hole: 5.5 x 12 mm
1203408
PPS-ST (6,5X15)Q - Stamping bit, for elongated hole: 6.5 x 15 mm
1204892
PPS-ST (3,8) - Stamping bit, for bore holes: 3.8 mm diameter
1202616
PPS-ST (4,3) - Stamping bit, for bore holes: 4.3 mm diameter
1202629
PPS-ST (5,3) - Stamping bit, for bore holes: 5.3 mm diameter
1202632
PPS-ST (6,4) - Stamping bit, for bore holes: 6.4 mm diameter
1204889
PPS-ST (7,0) - Stamping bit, for bore holes: 7.0 mm diameter
1202726
PPS-ST (8,4) - Stamping bit, for bore holes: 8.4 mm diam
1206285
Workbench - PPS TABLE
