Official DistributorSKU
Weight
0.912 kg

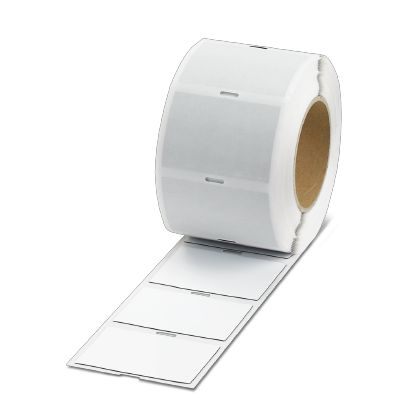

EMLP (85,6X54)R - Etiquette
Etiquette, Rouleau, blanc, vierge, repérable avec : THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, type de montage: collage, Nombre d'étiquettes: 250, hauteur du champ de texte: 54 mm, largeur du champ de texte: 85,6 mm
- Les repères autocollants EMLP ... conviennent particulièrement au repérage des composants, des appareils et des boutons électriques
- Les repères sont équivalents aux étiquettes gravées, ils offrent un aspect de qualité supérieure
- Repérage rapide et économique grâce aux imprimantes à rouleau THERMOMARK ... de Phoenix Contact
- Associé au ruban encreur adapté, le repérage est très résistant aux solvants et aux influences mécaniques
- Services d'impression : Phoenix Contact imprime tous les repères EMLP ... individuellement selon vos besoins
Technical Specifications
Dimensions
| Length (b) | 54 mm |
| Width (a) | 85.6 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Ambient temperature (assembly) | > 18 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | white |
| Components | Silicone-free |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 250 |
| Number of individual labels per row | 1 |
| Mounting Type | adhesive |
| Testing substances harmful to the wetting properties of lacquers (LABS conformity) | VDMA 24364-A1-L:2018-05 |
| Result | Test passed |
| Result | Test passed |
| UV resistance | Following ISO 4892-2:2013-03 |
| Result | Test passed |
| Test duration | 96 h |
| Temperature resistance | Following ANSI/UL 969-2018:03 |
| Test duration | 240 h |
| Rating 150 °C (180 °C) | Test passed |
| Test for wipe resistance of inscriptions | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Test for wipe resistance of inscriptions | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Test duration | 168 h |
| Test duration | 168 h |
| Testing in a condensation changing climate in the presence of sulfur dioxide | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
| Silicone-free | Yes |
Accessories
5145384 - Ink ribbon, for roll printers for printing the product groups TML..., WML..., WML HF..., WML-FLAG..., EML..., EML-ESD..., EML-RM..., EML-HA..., EMLS..., EMLC..., EMLP... and PMM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
