1090189
Official DistributorSKU
PHX1090189
MPN
US4-EMLP (27X17,5) SR
Weight
0.018 kg

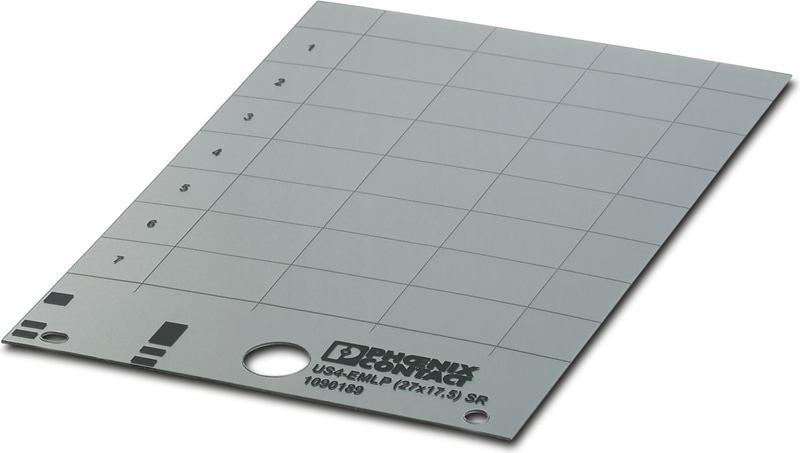

US4-EMLP (27X17,5) SR - Plastic label
- The US4-EMLP ... device markers can be adhered to SIRIUS ACT 3SU... series marker carriers from SIEMENS
- The markers, which are supplied in uniform sheets, can be marked quickly, easily, and inexpensively using the card printers
- The perforated markers and labels are easy to separate and can be easily fitted
- The sheets provide space for additional project information or function text that can be helpful during assembly
Technical Specifications
Product properties
| Area of application | SIEMENS: SIRIUS ACT 3SU marker carrier |
Marking
| Identification technology | Thermal transfer |
Mounting
| Mounting Type | adhesive |
Material specifications
| Color | silver |
| Material | PVC |
| Components | Silicone-free |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 80 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
Dimensions
| Width | 27 mm |
| Height | 0.5 mm |
| Length | 17.5 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
Why Proax for Phoenix Contact 1090189?
Proax is an authorized distributor of Phoenix Contact 1090189 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
