1029566
Official DistributorSKU
PHX1029566
MPN
UM- D37SUB/M/HC3/AIO/SP-MT
Weight
0.31 kg
Series UM-D

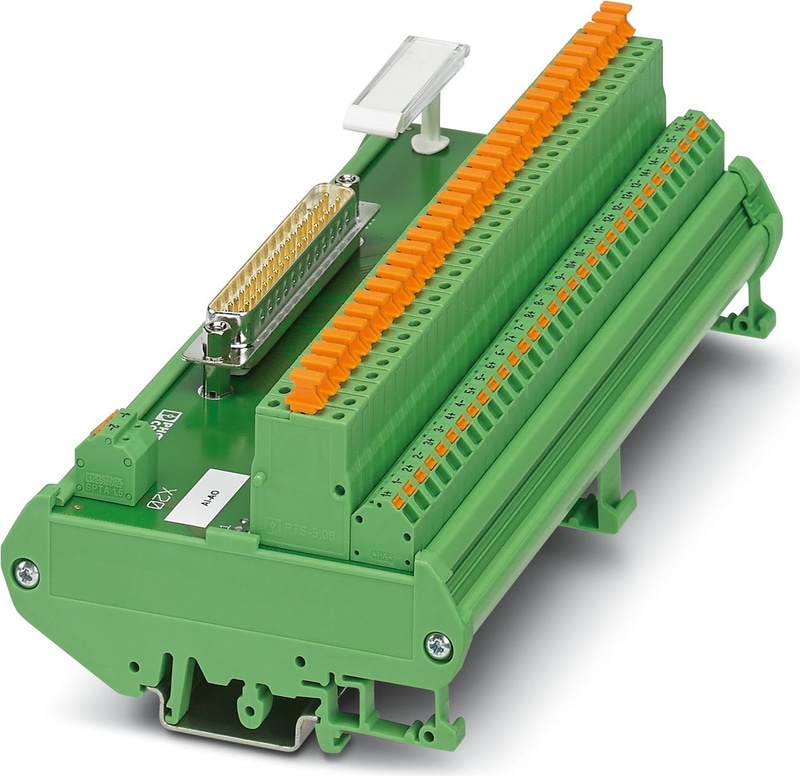

UM- D37SUB/M/HC3/AIO/SP-MT - Interface module
16-channel module for Honeywell C300 modules. The module is controlled by the control system via 37-pos. D-SUB. A spring-cage connection (1+, 1-,...16+,16-) with knife disconnection is provided in the field. Module width: 254 mm
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (DC) | ≤ 30 V DC |
| Current (per branch) | ≤ 0.1 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV (1.2/50 μs) |
Supported controller HONEYWELL Experion PKS C300/C-Series
| Suitable I/O card | TDIL01 (non-redundant) |
| Suitable I/O card | TDIL11 (redundant) |
| Suitable I/O card | TDOB01 (non-redundant) |
| Suitable I/O card | TDOB11 (redundant) |
| Suitable I/O card | TAIX01 (non-redundant) |
| Suitable I/O card | TAIX11 (redundant) |
| Suitable I/O card | TAOX01 (non-redundant) |
| Suitable I/O card | TAOX11 (redundant) |
Connection 1 (control level)
| Connection in acc. with standard | IEC 60807-2 |
| Connection Method | D-SUB pin strip |
| Screw thread | UNC 4-40 |
| Number of Connections | 1 |
| Number of Positions | 37 |
| Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm |
Connection 2 (field level)
| Connection Method | Push-in spring connection |
| Stripping length | 10 mm |
| Number of Connections | 1 |
| Number of Positions | 34 |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section AWG | 24 ... 16 |
| Pitch | 5.08 mm |
Signaling
| Status display present | No |
Item dimensions
| Width | 168.3 mm |
| Height | 89.6 mm |
| Depth | 65.59 mm |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
UKCA
| Certificate | UKCA-compliant |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
