1014314
Official DistributorSKU
PHX1014314
MPN
PMM (EX40)R YE
Weight
1.217 kg

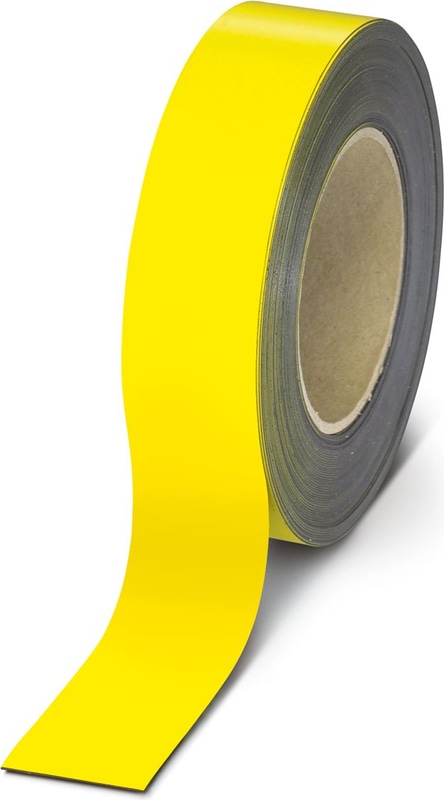

PMM (EX40)R YE - Magnetic label
- The magnetic labels supplied in rolls represent an individual and flexible marking solution, e.g., for warehouse marking
- High adhesive strength
- The flexible magnetic tape will also adhere to round objects with a radius from 12 mm
- Magnetic tape coated with polyester foil
- Magnetic labels, unprinted
Technical Specifications
Product properties
| Area of application | Magnetic labels |
| Area of application | Warehousing/logistics |
| Product property | magnetic |
Marking
| Number of individual labels | 1 |
| Number of individual labels per row | 1 |
| Identification technology | Thermal transfer for rolls |
Dimensions
| Width | 40 mm |
| Length | 15000 mm |
| Material strength | 0.56 mm |
Material specifications
| Color | yellow |
| Material | Magnetic tape |
| Coating | Polyester foil |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 55 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | magnetic adhesion |
Accessories
THERMOMARK-RIBBON 110 - Ink ribbon, for roll printers for printing the product groups TML..., WML..., WML HF..., WML-FLAG..., EML..., EML-ESD..., EML-RM..., EML-HA..., EMLS..., EMLC..., EMLP... and PMM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
