1014231
Official DistributorSKU
PHX1014231
MPN
PML-T102 (26X280)R
Weight
0.491 kg
Series PML-T

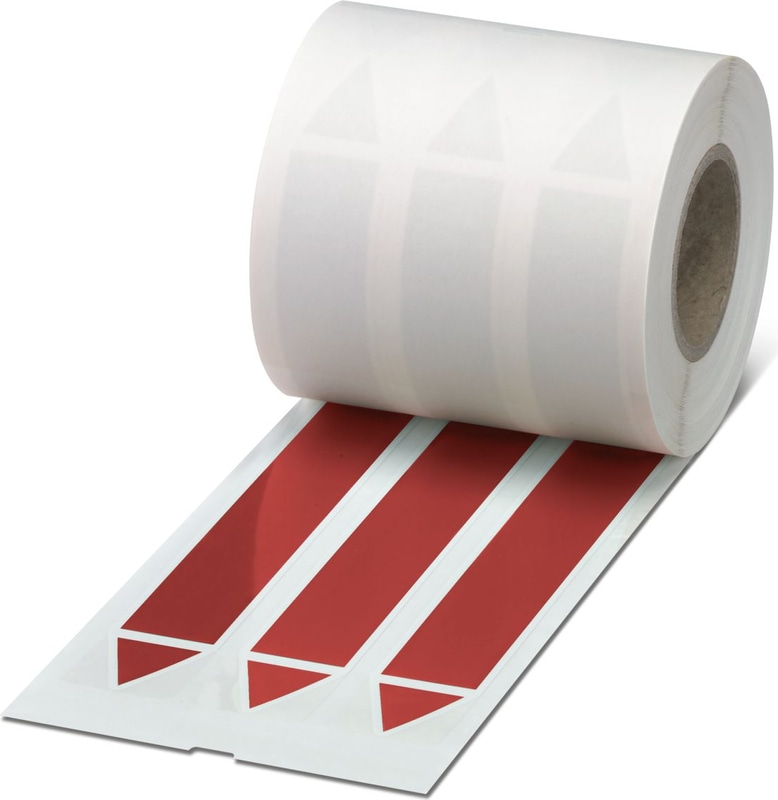

PML-T102 (26X280)R - Pipeline markers
- Stick-on pipeline markers, unmarked
- Suitable for indoor and outdoor use
- Pipeline marking according to DIN 2403
- In combination with the PML-GHS hazardous substances labels, marking which conforms to the Ordinance on Hazardous Substances (GefStoffV) can be applied
- High adhesive strength
- Finely perforated arrowheads enable the arrowheads which are not required to be easily removed
- High temperature resistance
- Group 2 (steam)
Technical Specifications
Product properties
| Area of application | Pipeline labels |
| Area of application | Pipeline identification according to DIN 2403 |
| Type | Rectangle |
Marking
| Number of individual labels | 250 |
| Printing | pre-printed |
Dimensions
| Width | 280 mm |
| Height | 26 mm |
| Length | 26 mm |
| Diameter | 0.00 mm |
Material specifications
| RoHS Compliant | yes |
| Foil strength | 50 µm |
| Adhesive | Acrylic |
| Color | red |
| Material | Polyester |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 150 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 2 years |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | adhesive |
Accessories
TM-RIBBON 110 WH 101 - Ink ribbon, For THERMOMARK roll printers for printing the product group material off the roll: PML-T..., length: 60 m, roll length: 60 m, width: 110 mm, color: white
Hazardous substances label, Sheet, red/white, labeled: Flammable, mounting type: adhesive, diameter: 0 mm, Number of individual labels: 4, text field height: 25 mm, text field width: 25 mm
Hazardous substances label, Sheet, red/white, labeled: Hazardous to the environment, mounting type: adhesive, diameter: 0 mm, Number of individual labels: 35, text field height: 13 mm, text field width: 13 mm
