1014288
Official DistributorSKU
PHX1014288
MPN
US-PML-GHS100 (25X25)
Weight
0.006 kg
Series US-PML-GHS100

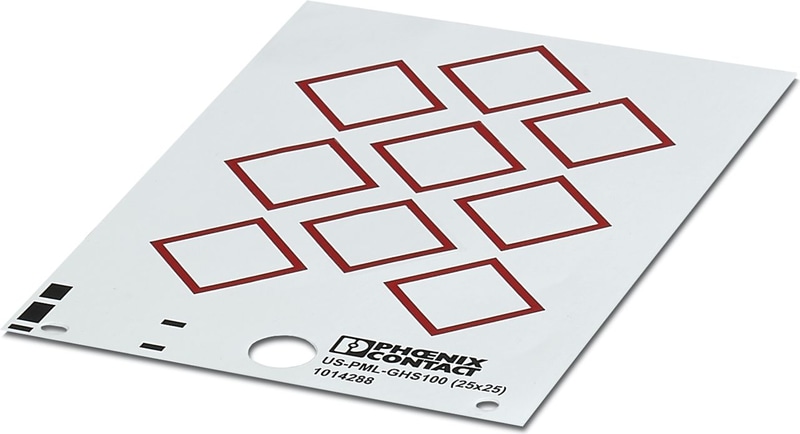

US-PML-GHS100 (25X25) - Hazardous substances label
- Stick-on hazardous substances labels, color preprinted, without symbol
- Suitable for indoor and outdoor use
- The markers conform to the GHS international standard
- High adhesive strength
- High temperature resistance
Technical Specifications
Product properties
| Area of application | Hazardous substance labeling according to CLP/GHS regulation |
| Type | Diamond |
Marking
| Number of individual labels | 9 |
| Printing | Diamond |
Dimensions
| Width | 25 mm |
| Height | 25 mm |
| Depth | 0.09 mm |
| Length | 25 mm |
| Diameter | 0.00 mm |
| Min. material thickness | 0.09 mm |
Material specifications
| Color | red/white |
| Material | Polyester |
| Components | Silicone-free |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 150 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | adhesive |
Accessories
THERMOMARK CARD-US-MAG1 - Magazine for the THERMOMARK CARD printer, for accommodating US cards
THERMOMARK-RIBBON 110-TC - Ink ribbon, for THERMOMARK CARD for printing product groups UCT..., US..., and UM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
