1014226
Official DistributorSKU
PHX1014226
MPN
PML-P100 (D100)R
Weight
0.715 kg
Series PML-P

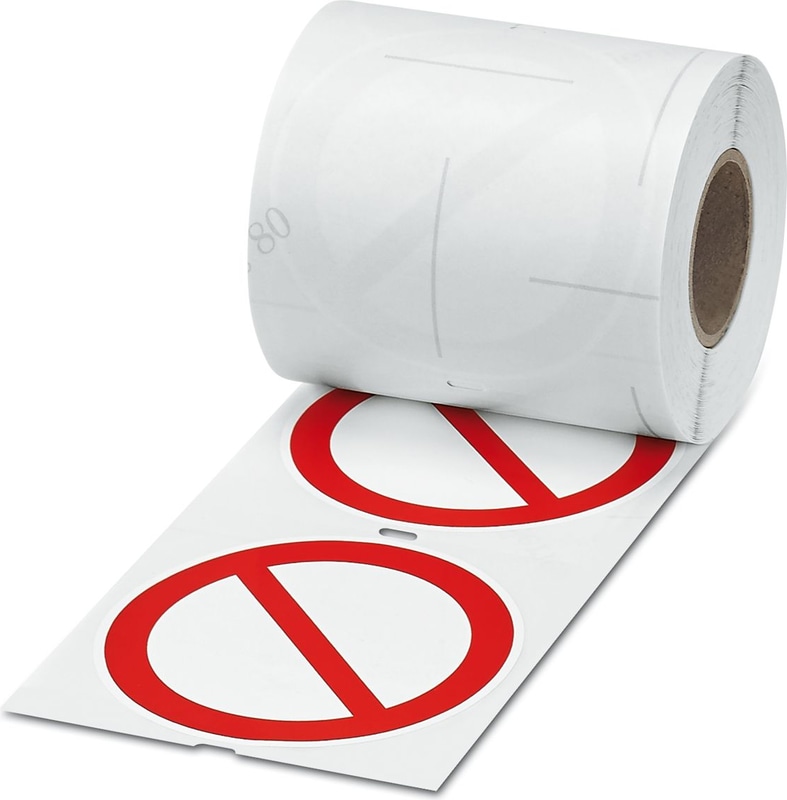

PML-P100 (D100)R - Prohibition sign
- The color preprinted PML-P ... prohibition signs without symbols allow you to create custom prohibition notices
- The label consists of soft, highly flexible PVC film that molds itself to uneven surfaces
- The prohibition signs conform to the ISO 7010 international standard
- When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences
- Marking service: Phoenix Contact can custom-mark all PLM-P ... markers according to your specifications
Technical Specifications
Product properties
| Area of application | Prohibition signs |
| Area of application | Prohibition marking according to ISO 7010 |
| Type | circular |
Marking
| Number of individual labels | 250 |
| Number of individual labels per row | 1 |
Dimensions
| Width | 100 mm |
| Height | 100 mm |
| Diameter | 100.00 mm |
Material specifications
| Color | red/white |
| Material | PVC |
| Components | Silicone-free |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 90 °C |
| Ambient temperature (assembly) | > 10 °C |
| Recommended ambient temperature (storage/transport) | 22 °C |
| Recommended humidity (storage/transport) | 50 % ... 55 % (Storage in a dry and dark place in the original packaging is recommended) |
| Shelf life | 2 years |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | adhesive |
Accessories
Ink ribbon, for roll printer for printing product groups WMTB HF..., WMS-2 HF..., TMT..., EMT..., EMLF..., PML-..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
