1011796
Official DistributorSKU
PHX1011796
MPN
EMLP-AL (27X27)
Weight
0.002 kg

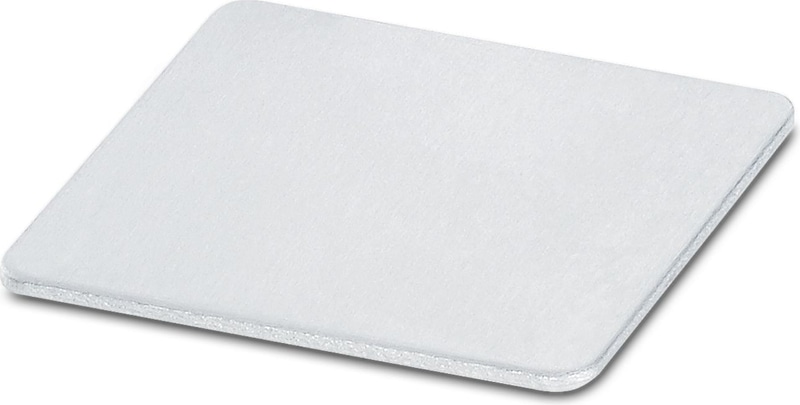

EMLP-AL (27X27) - Equipment marking
- The markers can be marked quickly, easily, and inexpensively with the BLUEMARK CLED
- Aluminum equipment marking for sticking on
- Identification made from metal, high strength in a lightweight design
- Increased durability due to the decoratively anodized surface
Technical Specifications
Marking
| Number of individual labels | 1 |
| Number of individual labels per row | 1 |
| Identification technology | UV LED technology |
Mounting
| Mounting Type | adhesive |
Material specifications
| Color | aluminum color |
| Material | Aluminum |
| Components | Free from silicone and cadmium |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 120 °C (> +80 °C slight changes of the material surface possible) |
| Ambient temperature (storage/transport) | 5 °C ... 25 °C |
| Recommended ambient temperature (storage/transport) | 5 °C ... 25 °C |
| Recommended humidity (storage/transport) | 50 % |
Dimensions
| Width | 27 mm |
| Length | 27 mm |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
