0830943
Official DistributorSKU
PHX0830943
MPN
UM8-TM (6X9)
Weight
0.002 kg
This product is Not Cancellable/Not Returnable

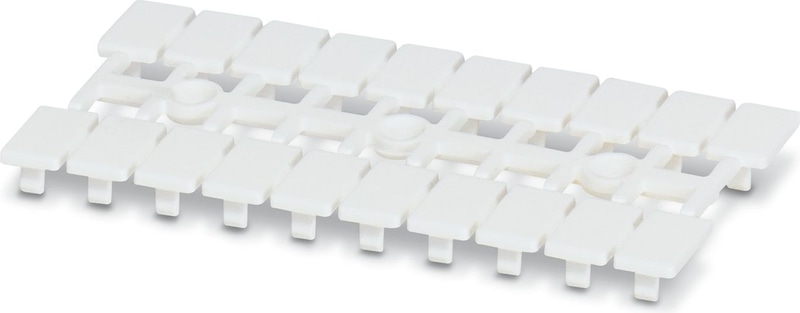

UM8-TM (6X9) - Marker for terminal blocks
- The markers, which are supplied in uniform strips, can be printed onto quickly and easily using the BLUEMARK printing systems
- The UM8-TM ... UM labeling range includes terminal markers for Woertz terminal blocks
- The multi-section marking strips are easy to fit and can be easily separated if required
- The markers support multi-line labeling
Technical Specifications
Product properties
| Area of application | Woertz |
| Pitch | 6 mm |
| Type | high |
Marking
| Number of individual labels | 20 |
| Number of individual labels per row | 10 |
| Number of marker strips | 2 |
| Identification technology | UV LED technology |
Dimensions
| Width | 6 mm |
| Length | 9 mm |
| Pitch | 6 mm |
Material specifications
| Color | white |
| Material | PC |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone, halogen, and cadmium |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | snapped |
