0815415
Official DistributorSKU
PHX0815415
MPN
ZBM 5/BK:UNBEDRUCKT
Weight
0.017 kg
Series ZBM

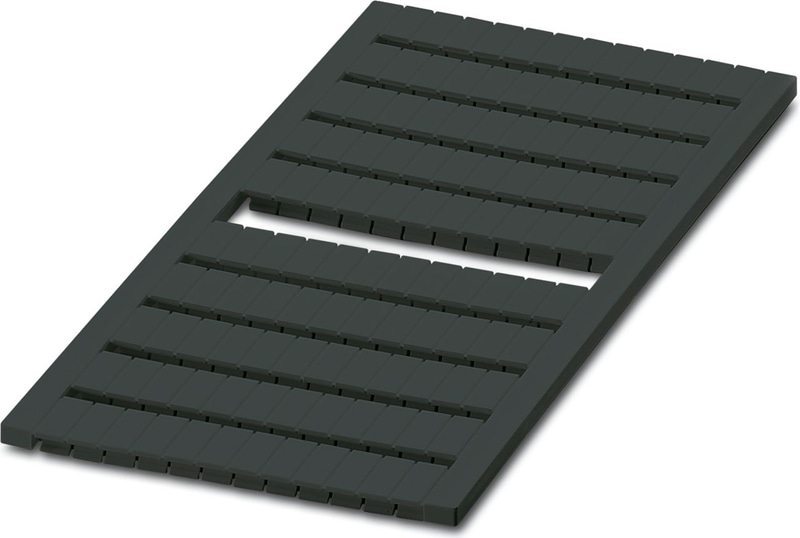

ZBM 5/BK:UNBEDRUCKT - Zack marker strip
Technical Specifications
Product properties
| Pitch | 5.2 mm |
| Type | high |
Marking
| Number of individual labels | 120 |
| Number of individual labels per row | 12 |
Dimensions
| Width | 4.6 mm |
| Length | 7.5 mm |
| Pitch | 5.2 mm |
Material specifications
| Color | black |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone and halogen |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | snap in |
Why Proax for Phoenix Contact 0815415?
Proax is an authorized distributor of Phoenix Contact 0815415 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1050 |
